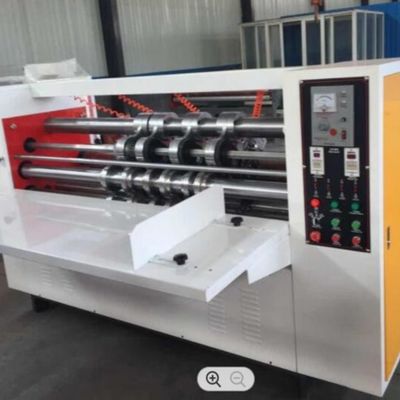

Six Lines Thin Blade Slitter Scorer 1900mm Corrugated Box Manufacturing Machine

I'm Online Chat Now

Six Lines Thin Blade Slitter Scorer 1900mm Corrugated Box Manufacturing Machine

Six Lines Thin Blade Slitter Scorer 1900mm Corrugated Box Manufacturing Machine
Six Lines Thin Blade Slitter Scorer 1900mm Corrugated Box Manufacturing Machine

Large Image :  Six Lines Thin Blade Slitter Scorer 1900mm Corrugated Box Manufacturing Machine

Product Details:
Place of Origin: CHINA
Brand Name: Hh
Certification: CE
Model Number: 2000mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: plastic
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets every month

Six Lines Thin Blade Slitter Scorer 1900mm Corrugated Box Manufacturing Machine

Description
Product Name: Thin Blade Slitter Scorer Corrugated Carton Box Machine Automatic Grade: Semi Automatic
After-sales Service Provided: Onlive Max.size: 1900mm
Voltage: 380v/50hz 220v/60hz Type: Corrugated Carton Box Machine
Dimension(L*W*H):: 2800*1500*1700 Machinery Test: Provided
Weight: 1500kg Condition: New
Speed: 80pcs/min Driven Type: Electric
High Light:

Thin Blade Slitter Scorer

,

1900mm corrugated box manufacturing machine

,

Six lines Slitter Scorer Machine



Thin Blade Slitter Scorer Corrugated Carton Box Machine

     This machine has automatic sharpening system. Each blades has independent control of the sharpening switch. In order to extend the blade life effectively, you can according to the production quantity adjust the sharpening interval time.



Main specification

Model BFY1800 BFY2000 BFY2200 BFY2500
Range between walls 1800 2000 2200 2500
Max. Slitting width 1700 1900 2100 2400
Min. Slitting width 180
Min slitting length 470
Min. Creasing width 60
Max. Speed 130
Slitting numbers Four knife or according to user requirements
Creasing numbers Six lines or according to user requirements
Processing cardboard thickness 2.5~10
Motor power 3.0 or 4.0


Featrue

1. Slitting the corrugated board edge is smooth, beautiful, no cracking.



2. This machine has step-less speed regulation system,different skilled workers can be operating.

3. This machine gearbox has open the door design,to convenient inspection and maintenance,repair.






Six Lines Thin Blade Slitter Scorer 1900mm Corrugated Box Manufacturing Machine 0
