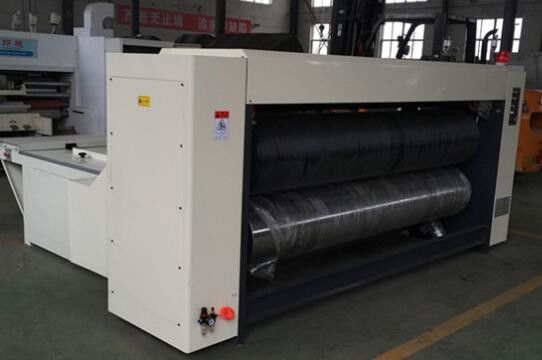

Diameter 480mm Rotary Die Cutter Carton Box Slotting Machine 7.5kw

I'm Online Chat Now

Diameter 480mm Rotary Die Cutter Carton Box Slotting Machine 7.5kw

Diameter 480mm Rotary Die Cutter Carton Box Slotting Machine 7.5kw
Diameter 480mm Rotary Die Cutter Carton Box Slotting Machine 7.5kw

Large Image :  Diameter 480mm Rotary Die Cutter Carton Box Slotting Machine 7.5kw

Product Details:
Place of Origin: CHINA
Brand Name: Hh
Certification: CE
Model Number: 1200*2600mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: plastic
Delivery Time: 15-30 days
Payment Terms: T/T, L/C
Supply Ability: 10 sets every month

Diameter 480mm Rotary Die Cutter Carton Box Slotting Machine 7.5kw

Description
Function: Produce Corrugated Carton Speed: 60pcs/min
Automatic Grade: Semi Auto Model: 1200*2600mm
Name: Semi Auto Corrugated Cardboard Rotary Slotting Machine Type: Automatic Rotary Slotting
Power: 7.5kw Packaging Type: Rotary Slotting
Condition: New Warranty: One Year
Diameter: 480mm Effective Printing Are: 1200*2600mm
High Light:

Diameter 480mm Rotary Die Cutter

,

Rotary Die Cutter 7.5kw

,

Carton Box Slotting Machine 7.5kw

Corrugated Carton Box Machine Rotary Die Cutting Slotting Machinery

  This series on corrugated paperboard separating paper, rolling the line, slicing the corner & slotting machine, It is comprehensive production equipment which is used for slotting , rolling the line and slice side of the corrugated paperboard.
Its main characteristic is single paperboard feeding by handwork.

Main specification

odel
Unit
φ400
φ480
φ535
φ600
φ735
Max.Speed
Pcs/min
60
60
60
60
60
Max Paper Feeding Size
mm
2400
1200*2600
2800
2600
1450*2800
3000
2600
1600*2800
3000

2600
1800*2800
3000
2600
2280*2800
3000
Min Paper Feeding Size
mm
350*600
400*600
420*600
420*600
500*700
Slotting width*depth
mm
7*300
7*350
7*400
7*450
7*550
Phase Adjustment
º
Electric 360
Electric 360
Electric 360
Electric 360
Electric 360



Features and characteristic:

1. Height of back paper bearing shelf can be adjust free. And it can move front and backward easy.

2. With polyurethane PU delivery gear, with Super wear resistance and durability

3. e PU front paper feed wheel core adapt precision alloy, long service life, high precision

4. Can be send paper board skip.

5. Infrared photoelectric counter, the order processing quantity, display production quantity

        Diameter 480mm Rotary Die Cutter Carton Box Slotting Machine 7.5kw 0
