Product Details:
|
| Name: | 2000mm Double Servo Drive Carton Box Stitching Machine | Driven Type: | Electric , Pneumatic |
|---|---|---|---|
| Application: | Food, Beverage, Commodity | Voltage: | 380v/50hz 220v/60hz |
| Condition: | New | Type: | Corrugated Box Stitching Machine |
| Machine Weight: | 2000kg | Core Components: | PLC, Gearbox, Gear |
| Nail Species: | Single Nail,double NaiL,TIE NAIL. | Production Capacity: | 600 Nail/min |
| Place Of Origin: | Hebei, China | Dimension(L*W*H): | 2800*2100*2000mm |
| Paperboard Type: | 3/5/7 Ply Paperboard | Number Of Stitching: | 1-99 Stitches |
| High Light: | servo drive carton box stitching machine,double servo drive corrugated box stitcher,2000mm corrugated box stitcher |
||

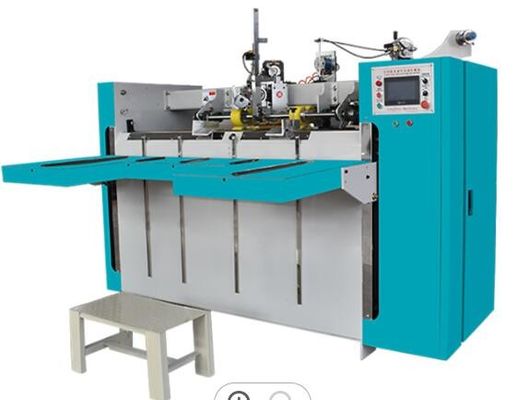

2000mm Double Servo Drive Carton Box Stitching Machine
Automatic stapler machine consiste of three sections: feeding section, floding section, Nailing section. Digital display speed regulation, microcomputer amplitude modulation, simple, reliable and accurate control mode, automatic paper feeding, automatic folding, automatic counting.
Main specification
| Power | 6HP |
| Length | 4500mm |
| Width | 2100mm |
| Weight | 2000kg |
| Speed | 450staples |
| Stitching Pitch | 30-70mm |
| Number of Stitching | 1-99Stitches |
| Max(L+W)X2 | 2460mm |
| Min(L+W)x2 | 606mm |
| Max H+CX2 | 1515mm |
| Min H+CX2 | 300mm |
| Hignt of feeder | 900mm |
Feature
1. Imported dual servo drive, accurate accuracy, reduced mechanical transmission, can effectively reduce the mechanical failure rate
2. Touch screen operation, parameters (nail distance, number of nails, seed sorting, back panel) change quickly and easily
3. The entire control system uses Omron PLC control system
