Product Details:
|
| Product Name: | 3 5 7 Produce Line Automatic Corrugated Carton Box Machine | Type: | Packing |
|---|---|---|---|
| Condition: | New | Warranty: | One Year |
| Driven Type: | Electric , Pneumatic | Certification: | CE ISO9001 |
| Marketing Type: | Ordinary Product | Core Components: | PLC, Gear, Motor, Pump, Bearing, Gearbox |
| Machine Type: | Corrugated Cardboard Box Making Machine Production Line | After Warranty Service:: | Video Technical Support, Online Support |
| After-sales Service Provided: | Online Support, Video Technical Support | Place Of Origin: | Hebei, China |
| High Light: | electric driven corrugated carton box machine,5ply corrugated carton box machine,7 ply corrugated box machine |
||

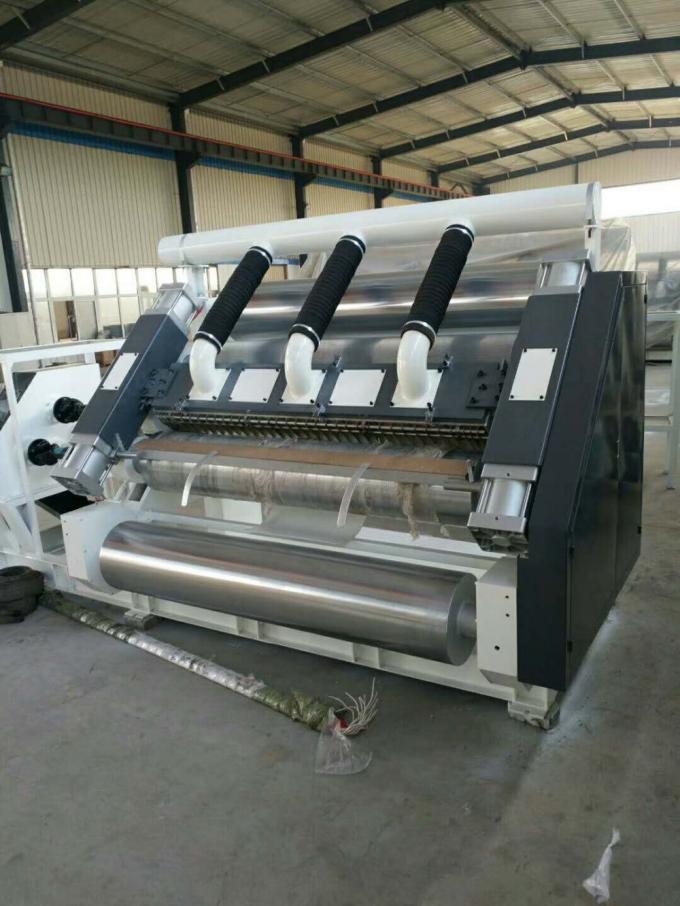

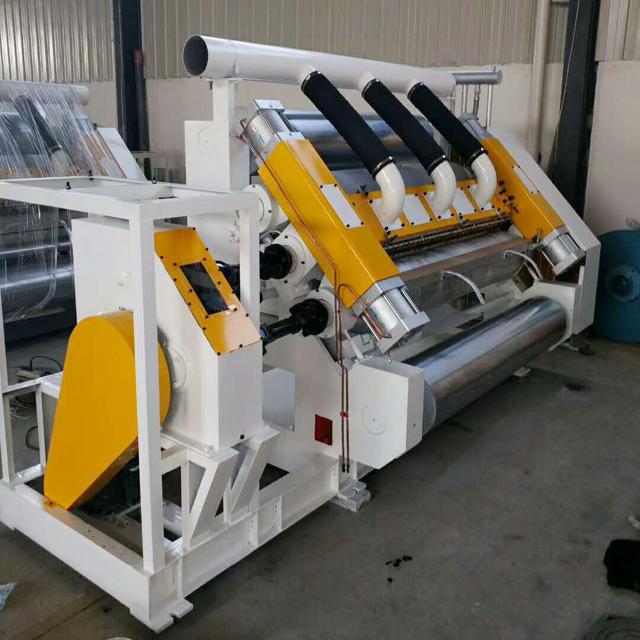

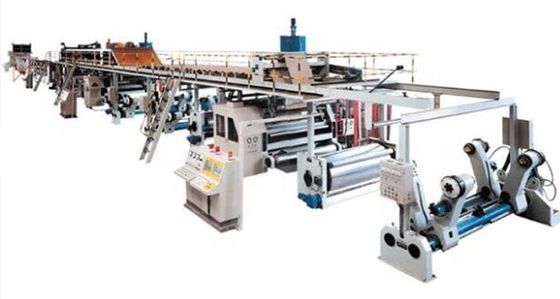

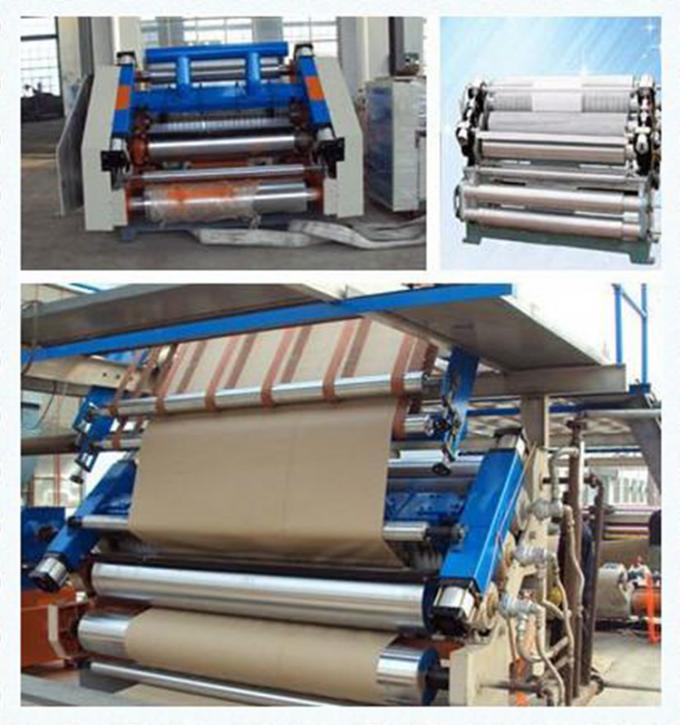

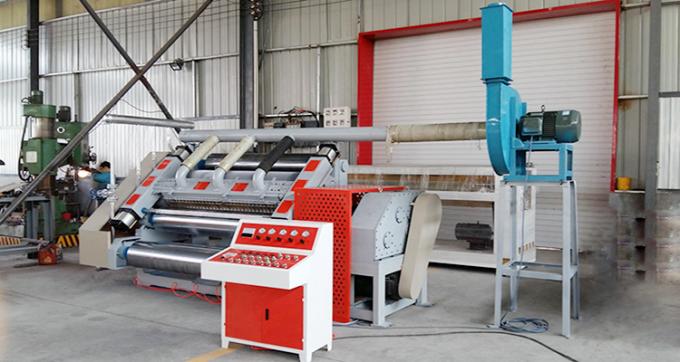

3 5 7 ply automatic corrugated cardboard carton box production machine line
1. Designed speed: 100 m/min
2. Available width: 1400 mm 1800 mm.
3. Flute type: A, C, B, E, for option
4. Suction blower type paper delivering with air speed adjusting device, to keep good flute shape under high speed running
5. Gluing section applies with automatic, self-circulating glue supply
6. Immersed / closed gear box lubricating to reduce noise, universal joint power transmission, to insulate vibration, frequency-changing main motor drive
7. Surface treatment of gluing rollerlxc280s: Engrave reticulate and chrome plated .
8. Adjustment of upper corrugating roller, pressure roller, and glue roller, is controlled by pneumatic system
9. Bearings of upper/lower corrugating roller, and pressure roller, use high-temperature-resist lubrication to keep running smoothly and durably

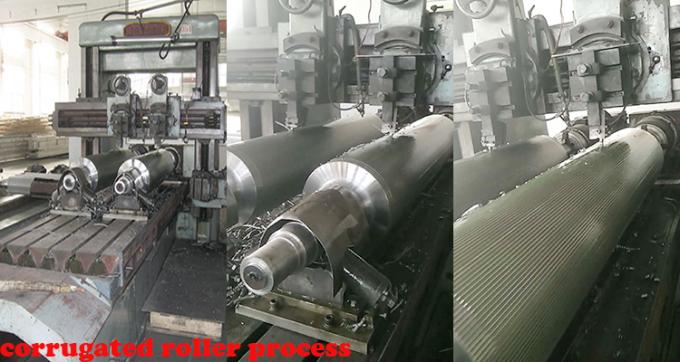

10. Upper and lower corrugating rollers are made of 48CrMo alloy steel, with heated-treatment for hardness HRC56-60, and the surface is well treated by grind , also be well treated with slitting machine, carton box making machine corrugated cardboard machine.
Technical Parameters
|
Machine Mode
|
Mode 1400
|
Mode 1600
|
Mode 1800
|
|
Working Speed
|
0-100 m/min
|
0-100 m/min
|
0-100 m/min
|
|
Flute type
|
A C B E F
|
A C B E F
|
A C B E F
|
|
Heating type
|
steam,oil,electric,gas
|
steam,oil,electric,gas
|
steam,oil,electric,gas
|
