Product Details:
|
| Core Components: | Gearbox, Gear, Motor, Anilox Roller | Key Selling Points: | High Productivity |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Item: | Carton Printing Slotting Die-cutting Machineryprinting |
| Color: | 1-6 Color Optional | Application: | Corrugated Carton Box Making Machine |
| Printing Material: | Corrugated Cardboard | Box Type It Can Make: | Standard Box And Diecut Box |
| High Light: | Carton Box Making Machine High Productivity,Printer Slotter Diecutter High Productivity,Mullticolour Printer Slotter Diecutter |
||

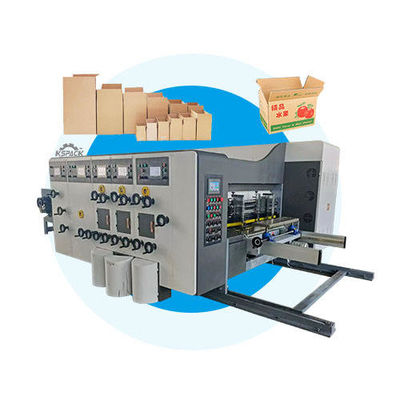

Printer Die Cutting Pizza Slotter Diecutter Carton Box Making Machine
printing roller (plate roller) (1), the outer diameter is φ292mm (including the outer diameter of the plate is φ300mm). (2), the surface of the steel pipe is ground and hard chrome plated. (3), do balance correction, and run smoothly. (4)Loading and unloading the printing plate, the electric control of the foot switch is reversed.
2, printing pressure roller (1), the outer diameter is φ124mm. (2), the surface of the steel pipe is ground and hard chrome plated. (3), do balance correction, and run smoothly. (4) Manual adjustment of the printing roller gap dial, the adjustment range is 0-12mm.
3, feeding the upper and lower rollers (1)Upper roll: Thick-walled steel pipe with outer diameter of φ71mm, equipped with four paper feed rings. (2), lower roll: outer diameter of φ124mm thick-walled steel pipe, surface grinding, hard chrome plating. (3), the paper feed roller clearance dial is manually adjusted, the adjustment range is 0-12mm.
|
Project unit type
|
2000
|
|
Wall panel inside width mm
|
2000
|
|
Maximum paper area mm
|
1900x950
|
|
Minimum paper area mm
|
450x220
|
|
Effective printing mm
|
1700x950
|
|
Printing plate thickness mm
|
3-8
|
|
Maximum speed Sheets/min
|
180
|
|
Economic speed Sheets/min
|
150
|
|
Main motor power KW
|
4.0
|
|
Color registration accuracy mm
|
two-color ±1
|
|
Slotting accuracy mm
|
±1.5
|
|
Wall panel thickness mm
|
30
|
|
Sheet feed mm
|
1900x1000
|
