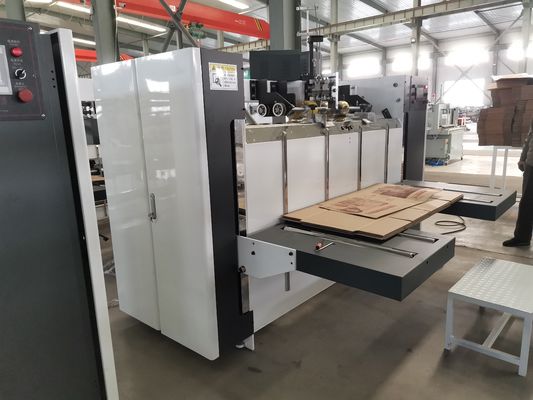

Product Details:
|
| Weight: | 2500kg | Max.size: | 1100mm |
|---|---|---|---|
| Min.size: | 550mm | Type: | Semi Auto |
| Condition: | New | Driven Type: | Electric , Pneumatic |
| Automatic Grade: | Semi Auto | Wire Size: | 17 |
| Certification: | CE ISO9001 | ||
| High Light: | semiauto stitching corrugated carton box machine,1100mm corrugated carton box machine,1100mm corrugated carton box making machine |
||
★Japan Mitsubishi imported double servo drive.,precision accuracy,reducing the mechanical transmission part,which can effectively reduce the failure rate of the machinery.
★Weinview touchscreen operation parameters(distance,nail,nail nail,arear baffle plate number,convenient and quick transformation).
★The whole control system adopts Mitsubishi PLC control system.
★After the electric baffle,using step motor drive,the size is accurate,the transform size more convenient.
★The control box is full contactor adopts Siemens brand.
★The photoelectric and proximity switches using the OMRON brand.
★The bottom mold,wolfram steel blade used in Japan(Nai Mo).
★The entire set of nail head all adopt the special steel manufacturing,computer gongs precision machining.
★It can nail nail///single,double screw,strengthening the nail(//////two double nail in the middle part of single screw)once completed,can be suitable for different customer requirements of different kinds of nail.
★The transform carton size and adjusting nail carton from just one minute can be completed,greatly saves time and is convenient to operate.
★Forward and backward two-way baffle,Applicable to cover carton and no cover carton.
★The front end to send automatic counting paper,paper feeding platform is provided with the photoelectric induction device,automatic rising feeder.
★The following section has the function of automatic counting,finished cartons can be set according to the number(2-99)sub stack sent to the conveying machinery terminal,convenient bundling.
★The machine speed:600nails per minute.
★The nail spacing:30-120mm adjustable.
★The paper pressing wheel gap electric adjustment.
★The working table lifting effective height:900mm.
★The machine covers an area of size:host2.8*2.7*2meters.
★The machine weight:2T
★The whole order adjustment,canstore 100 orders.
★The whole machine electrical isolation transformer protection device
★utomatic wire feed system,no alarm,20kg grail flat wire,to save time.
| 2000 | |
| MAX.(A+B)X2 | 3740(1100+770)mm |
| MIN.(A+B)X2 | 700mm |
| MAX.(C+D+C) | 2500mm |
| MIN(C+D+C) | 400mm |
| MIN.C | 20mm |
| MAX.C | 310mm |
| MAX. WIDTH B | 770 mm |
| Min.width B | 150 mm |
| MAX. A | 1100mm |
| MIN. A | 200mm |
| MAX.D | 2000 mm |
| MIN.D | 150 mm |
| MAX. E | 40 mm |
| MAX. HEIGH | 900mm |
| Machine size | 2850x1700x1800mm |
| weidht(T) | 1.5 |
| Speed | 600 |
| 订数 | 2-99 |
