Product Details:
|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Key Selling Points: | Easy To Operate |
|---|---|---|---|
| Machine Type: | Small Corrugated Carton Box Printing Slotting Machine | Diamater Of Roller: | 400mm/480mm/530mm |
| Machine Colour: | Customized | Machine Name: | Corrugated Carton Box Machine |
| High Light: | Printing Slotting corrugated carton box machine,Precision Engineered corrugated carton box machine,Precision Engineered corrugated box making machine |
||

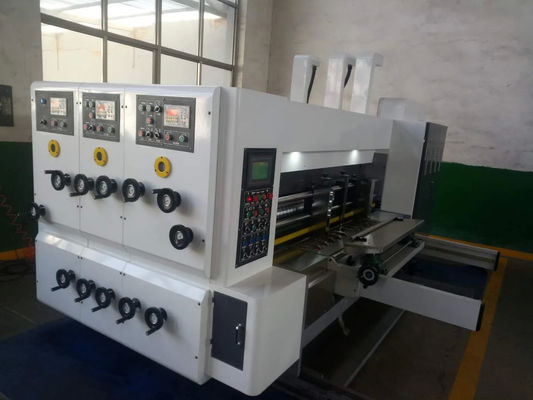

Small Corrugated Carton Box Printing Slotting Machine
Machine specification
| Item | Unit | 2200 Model |
| Machine size | mm | 4000*3000*3000(L*W*H) |
| wall board size | mm | 2200 |
| paperboard size | mm | 2000*900 |
| min size | mm | 450*220 |
| Print size | mm | 1800*950 |
| Print plate thickness | mm | 3-8 |
| Max speed | sheets/min | 180 |
|
Lead edge feeder part
(1) The outer diamter of the upper roller is φ100 mm (2) high-quality seamless steel, wrapped with wear-resistant rubber, and balance correction. (3) the lower roller φ124mm embossed hard chrome plated, and balance correction.
|
|
|
Printing part
(1), the outer diameter is φ292mm (including the outer diameter of the plate is φ300mm). (2), the surface of the steel pipe is ground and hard chrome plated. (3), do balance correction, and run smoothly. (4) Loading and unloading the printing plate, the electric control of the foot switch is reversed. 1-5 colour optional |
 |
 |
Slotter part (1) The shaft diameter is φ71 mm and the surface is ground. Hard chrome plated for smooth movement. (2)do balance correction, and run smoothly. (3) Manual adjustment of the pressure wheel gap dial, the adjustment range is 0---12mm. 2, slotted tool holder traverse adjustment mechanism |
|
Die cutter part - optional 1. The plate roll and pad roller are made of high quality steel, and the surface is polished and plated with hard chrome. Static and dynamic balance correction, good running stability. 2. Pneumatically controlled die gap and automatic detachment die cutter device to protect the rubber pad and prolong the service life of the rubber pad.
|
 |
