Product Details:
|
| Applicable Industries: | Machinery Repair Shops, Food & Beverage Factory, Farms, | Showroom Location: | Viet Nam, Saudi Arabia, Indonesia, Mexico |
|---|---|---|---|
| Warranty Of Core Components: | 3 Years | Core Components: | PLC, Gearbox, Gear |
| Driven Type: | Electric | Maximum Paper Height: | 2900mm |
| Minimum Paper Height:: | 400mm | Nail Distance: | 30-150mm |
| High Light: | 2000mm Carton Box Stitching Machine,Carton Box Stitching Machine high productivity,corrugated box stitching machine high productivity |
||

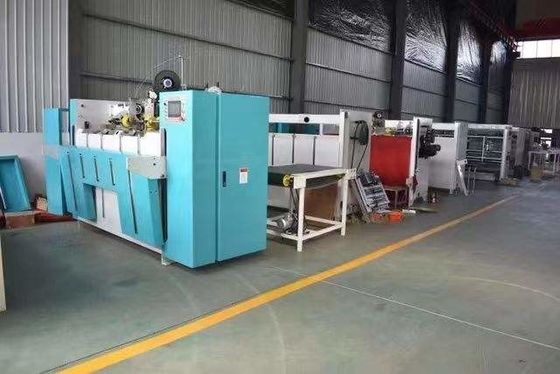

Semi-Auto Corrugated Carton Box Stitching Staple Machine
1.The entire set of nail heads are made of Taiwan original parts, and the service life of the head is longer.
2.It only takes one minute to change the carton size and adjust the nail distance of the carton, which greatly saves time and is easy to operate. ★ There is an automatic counting function in the back section, and the number of finished products can be divided and sent to the end of the conveying machine according to the set number (1-99), which is convenient for packing and binding.
3.The front paper feeding section automatically counts, and the paper feeding table is equipped with a photoelectric sensor, which automatically rises when feeding paper.
4.Paper feeding height: 900mm.
5. Mechanical speed: 600 nails/min.
6. One set of dual purpose, can nail single-chip nailed cartons, double-chip nailed cartons, and irregular cartons.
7. Reinforced nails, single nails, double rows of nails can be nailed, all at once.
8. The paper feeding department automatically counts, and the finished product is sent out for binding.
9. Suitable for small and medium-sized cartons, fast and labor saving.
|
Model and parameters
|
SDJ-1600D
|
SDJ-2000
|
SDJ-2500
|
|
Maximum paper size (A+B) * 2 (mm) |
3200
|
4000
|
5000
|
|
Minimum paper size (A+B) * 2 (mm) |
980
|
980
|
980
|
|
Maximum carton length A mm
|
1480
|
1880
|
2380
|
|
Minimum carton length A mm |
370
|
370
|
370
|
|
Maximum carton width B mm |
800
|
1000
|
1250
|
|
Minimum carton width B mm |
120
|
120
|
120
|
|
Maximum paper height (C+D+C) (mm) |
2900
|
2900
|
2900
|
|
Minimum paper height (C+D+C) (mm) |
400
|
400
|
400
|
|
Maximum flap size C (mm) |
450(Standard)
600(Optional) |
450(Standard)
600(Optional) |
450(Standard)
600(Optional) |
|
Minimum flap size C (mm) |
80(Standard)
20(Optional) |
80(Standard)
20(Optional) |
80(Standard)
20(Optional) |
|
Maximum height D (mm) |
2000
|
2000
|
2000
|
|
Minimum height D (mm) |
200
|
200
|
200
|
|
Max tongue width (mm) |
40
|
40
|
40
|
|
Nail distance mm |
30-150
|
30-150
|
30-150
|
|
Nail number |
2-99
|
2-99
|
2-99
|
|
Nail speed (times/mim) |
600
|
600
|
600
|
|
Machine weight (T)
|
3.0
|
3.2
|
3.5
|
