Pneumatic Driven Corrugated Carton Box Machine Printing Slotting Die Cutting

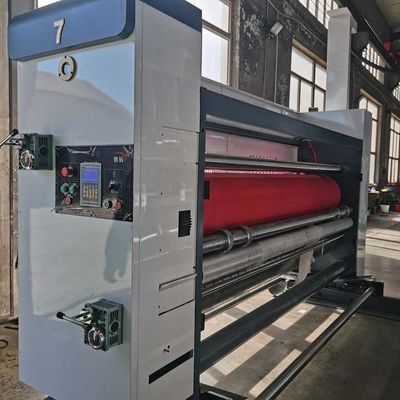

Large Image : Pneumatic Driven Corrugated Carton Box Machine Printing Slotting Die Cutting

Product Details:

Place of Origin:	CHINA
Brand Name:	Hh
Certification:	CE EAC
Model Number:	1200*2600mm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiated
Packaging Details:	plastic
Delivery Time:	15-30 days
Payment Terms:	T/T
Supply Ability:	30 sets every month

Contact Now

Pneumatic Driven Corrugated Carton Box Machine Printing Slotting Die Cutting

Description

Type:	Printing Slotting Die-Cutting Corrugated Carton Box Machine	After-sales Service Provided:	Online Support, Video Technical Support, Overseas Service Center Available, N
Condition:	New	Warranty:	One Year
Application:	Machinery & Hardware, Food, Medical, Beverage, Commodity	Driven Type:	Electric , Pneumatic
Color:	Client Request
High Light:	Automatic Alignment Corrugated Carton Box Machine , Touch Screen Corrugated Carton Box Machine , Pneumatic Driven Corrugated Box Maker Machine

Printing Slotting Die-Cutting Corrugated Carton Box Machine

Lead edge Feeder

► China Famous Brand Komori Seiko Brand

► Touch Screen control the machine

► Automatic alignment function

►Good super extension function and precise paper feeding function

►Variable frequency drive control for vacuum blower fan for increased or decreased vacuum suction to match different size cardboard.

Rotary die Cutter

►International Famous Brand Anvil cover: Germany Depair
►Side to side oscillation of anvil drum(45mm)
►Anvil trimmer to keep surface of the anvil covers flat and smooth.
►The die drum’s transverse movement can prolong the service life of anvil cover.
►The die-cut cylinder lateral register is about±10mm

Printer 1-5 color optional

►Quick set and self locking pull collars.
►Anilox roller LPI according to customer requirement.
►The printing roller axial clearance manual adjustment, adjustment range + 5 mm.

►The printing roller to 360 degrees of digital phase adjustment of the computer electric motor, can be preset digital automatic
adjustment (operation, stop can be adjusted).

►plate rod and the transmission gear with free bond collar, convenient disassembly, maintain long-term printing color accuracy.

Electrical appliances

Adopt Delta inverter

Main electric parts Schneider

MCGS Touch Screen

Control Panel

Professional English Panel

Other languages can be customized

Specification

Model	530D-2800	420D-2400	480D-2600
Machine speed	180 sheet/min	180 sheet/min	180 sheet/min
Economic speed	150 sheet/min	150 sheet/min	150 sheet/min
Max. paper size	1650×2800mm	1300×2400mm	1450 ×2600mm
Max. printing size	1600×2600mm	1300×2200mm	1450 ×2400mm
Skip feeding paper	1850×2800mm	1550×2400mm	1700 ×2600mm
Min. paper size	400×700mm	290×500mm	380*600mm
Printing plate thickness	7.2mm	7.2mm	7.2mm
Tinted precision	4( color) ±0.5mm	4( color) ±0.5mm	4( color) ±0.5mm
Slotting precision	±1.5mm	±1.5mm	±1.5mm
Max. slotting depth	7 ×400mm	7×310mm	7×350mm
Max. slotting depth	increase the blade, increase the slot depth
Min. Slot distance positive knife negative knife	150 ×150 ×150x150mm 280 ×70 ×280 ×70mm	140×140×140×140mm 260×60×260×60mm	150 ×150 ×150x150mm 280 ×70 ×280 ×70mm
Printing plate diameter (contain plate thickness)	530mm	420mm	480mm
Printing paper	A,B,C,A/B,B/C and A/B/C type corrugated paperboard (the maximum interval 11mm)
Printing rolling axle circle-oriented regulating	360 degree revolving
Printing rolling axle-oriented regulating	+/-10mm
Power supply	As customer’s wish
