Product Details:
|
| Weight: | 2500kg | Voltage: | 380v/50hz 220v/60hz |
|---|---|---|---|
| Type: | Corrugated Carton Box Machine | Condition: | New |
| Warranty: | One Year | Driven Type: | Electric , Pneumatic |
| Automatic Grade: | Semi Auto | Packaging Material: | Plastic, Wood, Paper, Metal, In Pallet Or/and With Film |
| Certification: | CE ISO9001 | Speed: | 60-200pcs/min |
| High Light: | Pneumatic Automatic Corrugated Box Making Machine,2800mm Automatic Corrugated Box Making Machine,Pneumatic Corrugated Box Making Machine |
||

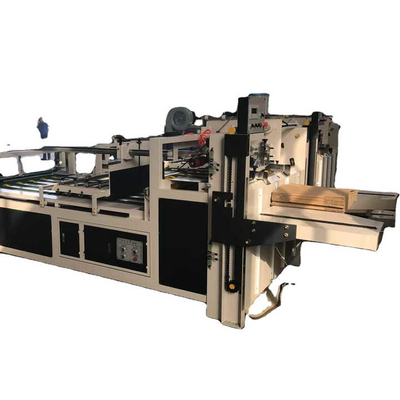

Pasting Glue Folder Corrugated Carton Box Machine
Structural features:
ü This machine is designed of manual folding and feeding, automatic glue application.
ü Working table up and down automatically. It is controlled by photoelectricity facility with features of convenience and easy operation.
ü Glue application assembly and both side block can be moved for adjustment conveniently and fastly. The order size setting can be finished within 1 minute.
ü The cam-linkage mechanism drive auto-emendation section by fan shape forwarding to enable good box sticking and good order output.
ü The strong wind blower work on box vertically to make sure nice box sticking.
ü After auto-emendation section there are another four pressure rollers with dia.60mm to keep output thickness more even and more better looking.
ü The output section is equipped with detective photoelectricity. Customer can set each lot order quantity ranging from 1 pc to 20 pcs, then the finished output will be delivered, which can save labor and accurate quantity.
Ø pecification
| Model | 2800 |
| Max open width | 2800mm |
| Min open width | 750mm |
| Max feeding length | 1300mm |
| Min feeding length | 300mm |
| High of feeder | 900mm |
| Power | 3kw |
| Machine length | 5300mm |
| Machine weight | 2150kg |
| Machine speed | 60m/min |
