Automatic Pneumatic Corrugated Carton Box Machine Flexo Printing Slotting Die Cutting

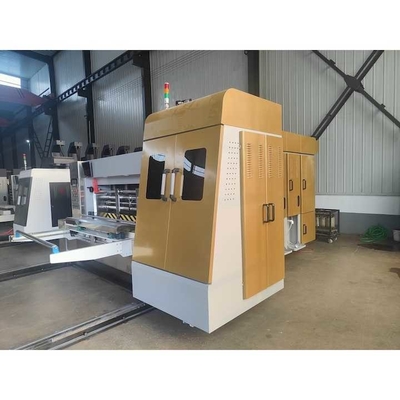

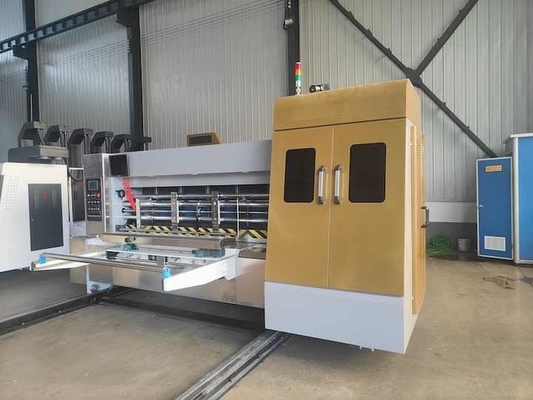

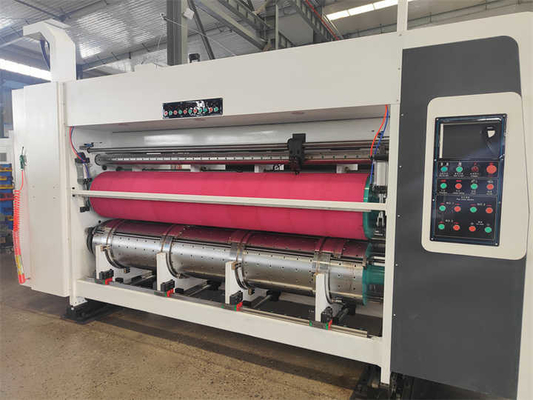

Large Image : Automatic Pneumatic Corrugated Carton Box Machine Flexo Printing Slotting Die Cutting

Product Details:

Place of Origin:	CHINA
Brand Name:	Hh
Certification:	CE EAC
Model Number:	1400*2600mm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiated
Packaging Details:	plastic
Delivery Time:	15-30 days
Payment Terms:	T/T
Supply Ability:	30 sets every month

Contact Now

Automatic Pneumatic Corrugated Carton Box Machine Flexo Printing Slotting Die Cutting

Description

Driven Type:	Electric , Pneumatic	Automatic Grade:	Full Atuomatic, Computerized
Packaging Material:	Plastic, Wood, Paper, Metal, In Pallet Or/and With Film	Packaging Type:	Corrugated Cardboard Production Line
Certification:	CE ISO9001	Product Name:	Corrugated Carton Box Machine
Function:	Printer Corrugatd Cardboard Make The Carton Box	Usage:	Corrugated Carton Box Machine
High Light:	pneumatic Corrugated Carton Box Machine , 1400 mm Corrugated Carton Box Machine , pneumatic Corrugated Box Making Machine

Automatic Flexo Printing Slotting Die Cutting Corrugated Carton Box Machine

Feeding unit:

1.Paper feeding type: auto leadpaper feeding.

2.Control face-plate function button putting concentrate and simple, operated convenient.
3.Electrically controlled the connecting and separated for the every unit with alarm to ensure the operator’s safety during its proceeding.
4.Infrared photo-electricity counter can presetting the order paper quantity.
5.One lock function for whole machine, which can avoid the damaged the machine with error operation

(The mainframe can not running when the every unit have not connected)
6.Pressure model elasticity feeding rubber roller, which can not to damaged the strength for corrugated cardboard.

Stacker unit:

Answer the paper arm:

(1). can choose manual type or automatic type operation.

(2). answer the paper arm transmission belt, individually tuning firmness, do not suffer belt nearly restrictions.

Bed lifting platform:

(1). Puissant chain drive.

(2). stack height is 1600mm.

(3). bed sets lifting transmission motor attached brake function, bed sets to maintain fixed position, and from slipping.

(4). adding the safety protection devices, make fluctuation bed sets in, ensure control of homework personnel safety.
(5). graphic wrinkles hill-climbing belt, prevent cardboard slide.

Specification

Specification
Machine Model	2200	2400	2600	2800
Color printing	1-6 colors	1-6 colors	1-6 colors	1-6 colors
Machine speed	150pcs/min	150pcs/min	150pcs/min	150pcs/min
Max cardboard size	1400*2000mm	1400*2200mm	1400*2600mm	1400*2800mm
Max printing size	1350*2000mm	1350*2200mm	1350*2500mm	1350*2800mm
Die cutting distance	1707017070mm 170170170170mm	1707017070mm 170170170170mm	1707017070mm 170170170170mm	1707017070mm 170170170170mm
printing plate	6mm	6mm	6mm	6mm
sheet thickness	3-11mm	3-11mm	3-11mm	3-11mm
