Product Details:
|
| Air Consumption: | 1000L/min | Air Pressure: | 0.6-0.8MPa |
|---|---|---|---|
| Control System: | PLC | Driving System: | Servo Motor |
| Max.Paper Thickness: | 7mm | Max.Speed: | 200m/min |
| Min.Carton Size: | L150*W150*H50mm | Model: | Carton Folder Gluer Machine |
| Operation System: | Touch Screen | Overall Dimension: | L11000*W3000*H1800mm |
| Power Supply: | 380V/50HZ | Total Power: | 14KW |
| Weight: | 7000KG | ||
| High Light: | Servo Motor Corrugated Box Gluing Machine,Servo Motor Folding Carton Gluer,PLC Folding Carton Gluer |
||

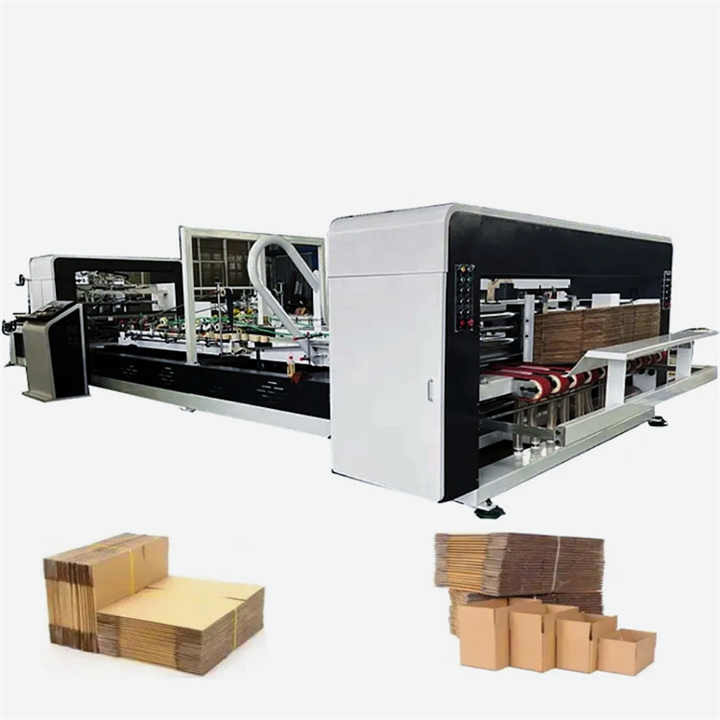

Automatic Mini Carton Stapler Stiching Folder Gluer Machine

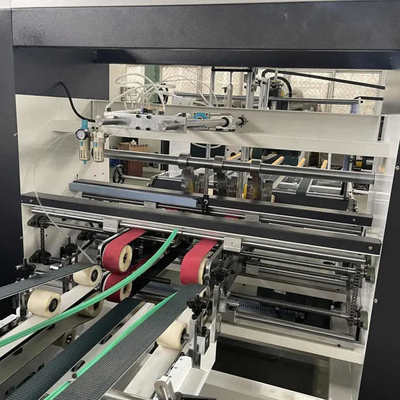

Feeding Section: Suction paper can better adapt to bending board; Frequency conversion control, so that the feeding section can be controlled separately, simple and reliable operation; Stainless steel glue-coated wheel, corrosion resistance, wear resistance, uniform glue-coated, glue saving, the amount of glue is about one-third of the amount of artificial glue-coated
|
Model
|
2600
|
|
Max (A+B)*2 (mm)
|
2600
|
|
Min (A+B)*2 (mm)
|
420
|
|
Max A (mm)
|
900
|
|
Min A (mm)
|
130
|
|
Max B (mm)
|
650
|
|
Min B (mm)
|
80
|
|
Max (C+D+C) (mm)
|
1200
|
|
Min (C+D+C) (mm)
|
170
|
|
Max C (mm)
|
350
|
|
Min C (mm)
|
50
|
|
Max D (mm)
|
100
|
