Product Details:
|
| Automatic Grade: | Semi Auto | Condition: | New |
|---|---|---|---|
| Driven Type: | Electric , Pneumatic | Type: | Carton Folder Gluer Machine |
| Packaging Type: | Carton Folder Gluer Machine | Application: | Carton Folder Gluer Machine |
| Certification: | CE ISO9001 | Power: | 4.0kw |
| Warranty: | One Year | ||
| High Light: | Semiautomatic Press Carton Folder Gluer Machine,Electric Driven Carton Folder Gluer Machine,Semiautomatic Press Small Box Folder Gluer |
||

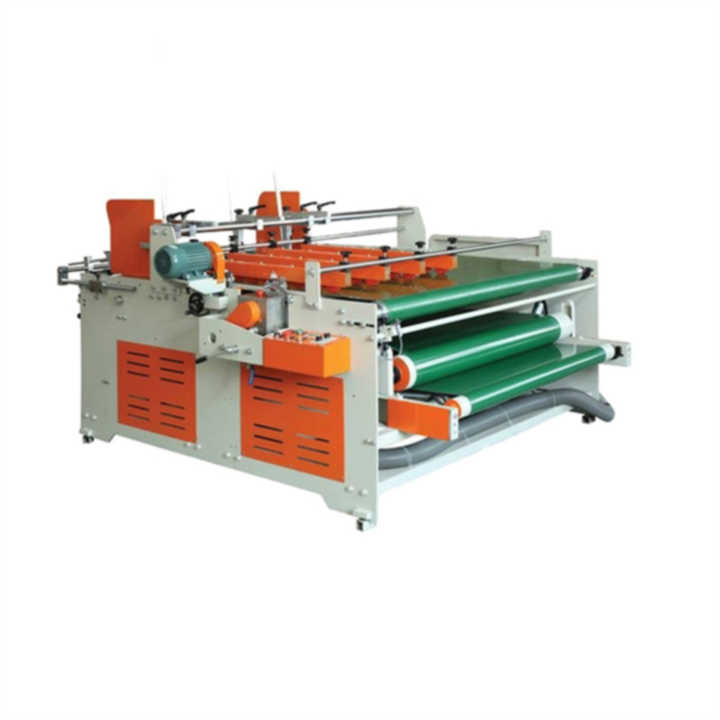

Carton Folder Gluer Machine
Pressing type adhesive box machine is the latest development of our company according to the needs of small and medium-sized orders of users, it is small in size, small in area, easy to operate and does not require experience: very suitable for small batch products and varieties of replacement: wide range of application: ordinary carton, special-shaped color box single-page molding bonding, automatic glue spray device can also be installed after the bottom of the trench carton and cover carton: save glue: The amount of glue is only equivalent to 1/3 of manual gluing: labor saving: the maximum speed of the machine is 56 m/min, and the efficiency is 3-4 times that of manual operation: the bonding is firm, neat and does not overflow: The patented double-head sander can polish the adhesive mouth very well to remove the uv light film layer or the peritoneal plastic layer and improve the adhesive force of the glue, which solves the problem that the carton factory is easy to unglue in some seasons.
Because the machine adopts manual folding to improve work efficiency, it is also suitable for the indentation line is not good,special shape and paper with Windows.
specification | 1500 | 1800 | 2000 | 2200 | 2500 |
Power source | 3—380VAC | 3—380VAC | 3—380VAC | 3—380VAC | 3—380VAC |
HZ | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
power | 1.15 | 1.15 | 1.15 | 1.15 | 1.15 |
Electric | 6.3 | 6.3 | 6.3 | 6.3 | 6.3
|
weight | 0.8 | 1.1 | 1.2 | 1.3 | 1.5 |
Overall dimension | 2.3*2.1*1.3 | 2.3*2.4*1.3 | 2.3*2.6*1.3 | 2.3*2.8*1.3 | 2.3*3.1*1.3 |
Paste to maximum size | 1500*1100 | 1800*1100 | 2000*1100 | 2200*1100 | 2500*1100 |
Paste to minimum size | 180*160 | 180*160 | 180*160 | 180*160 | 180*160 |
