Product Details:
|
| Weight: | 2500kg | Voltage: | 380v/50hz 220v/60hz |
|---|---|---|---|
| Type: | Corrugated Carton Box Machine | After-sales Service Provided: | Online Support, Video Technical Support, Overseas Service Center Available, N |
| Condition: | New | Warranty: | One Year |
| Driven Type: | Electric , Pneumatic | Automatic Grade: | Full Atuomatic, Computerized |
| High Light: | Slitter Score corrugated cardboard machine,Customizable corrugated cardboard machine,Customizable corrugated box maker |
||

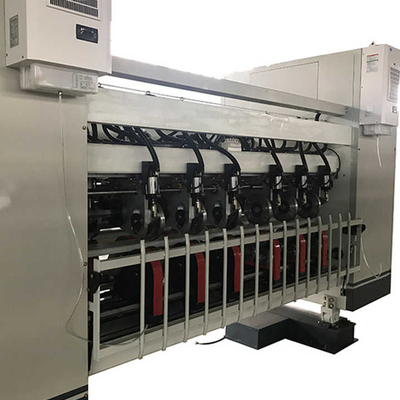

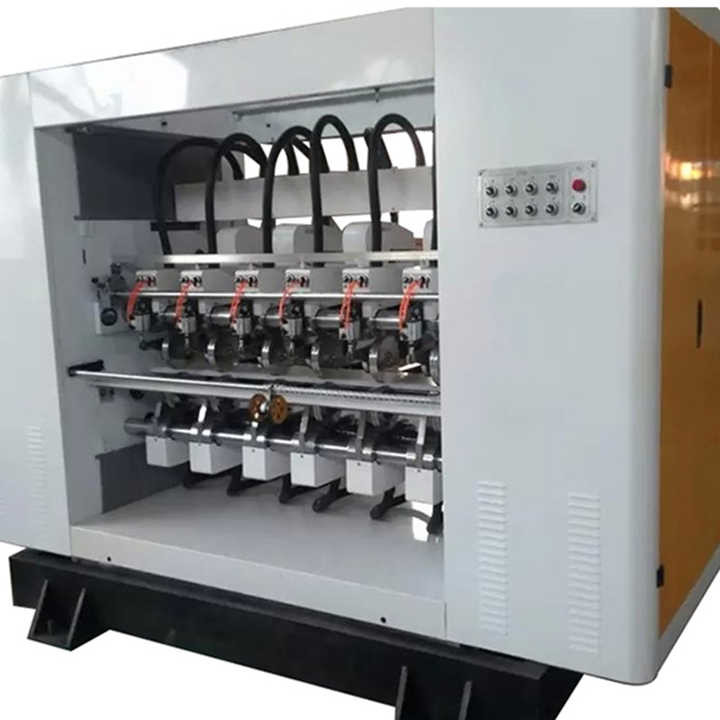

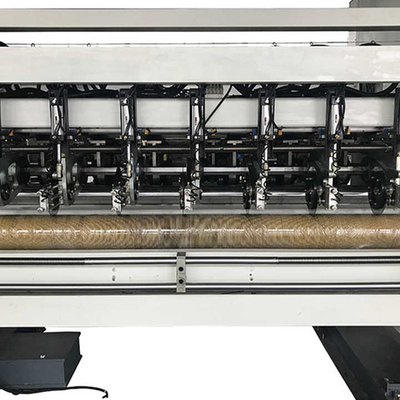

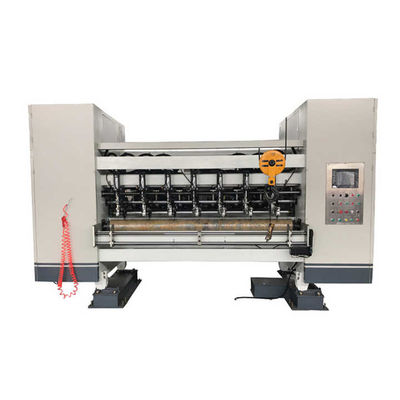

Thin Blade Slitter Score Corrugated Carton Box Machine
The machine used to cut the corrugated cardboard and press the line . The board paper cutting by the machine is neat and smooth ,without pressing flat, it is very nice .Also there are a lot of advantage ,such as it is very beautiful outside ;the instruction is tight ;it is very easy and steady to operate; the using life is very longer
main Parameters:
1.Thin knife, thickness less than lmm, smooth edge of the corrugated paper after cutting little crushing, high quality paper board.
2.A pair of emery wheels for each knife.
3.2kinds of sharpening devices-manual and pneumatic ,sharpening time and intervals decided by customers. By manual operation sharpness and longer life of the knife and the wheel is available.
4. Stability and long duration by gear or rack drive.
5. adjust the knife move by electric
Technique data:
| Width of passing paper board | mm | 2100 |
| Speed of passing paper board | m/min | 80-180 |
| Number of knives | Piece | 4(increase or decrease available) |
| Number of track-pressing wheels | Pair | 6(increase or decrease available) |
| Min, dividing width | mm | 130 |
| Min. track-pressing width | mm | 60 |
| Diameter of knife | mm | φ200 |
| Thickness of knife | mm | ≤1mm |
| Motor power | kw |
4.0
|
| Cut the cardboard thickness | mm | 2-14 |
| Appearance size | mm | 2800×1120×1600 |
| Weight | kg | 1200 |
