Product Details:
|
| Processing Types: | Vacuum Packing Machine | Plc: | Simens |
|---|---|---|---|
| After Warranty Service: | Online Support | Paper Weight: | 80-600gsm |
| Top Paper Thickness: | 150-500g | Feeding Way: | Lead Feeder |
| Size: | Customized | Packaging Type: | Corrugated Carton Box Machine |
| Repeated Accuracy: | ≤0.1mm | Printing Length: | 400-2800mm |
| High Light: | reliable corrugated carton box machine,high performance corrugated carton box machine,high performance corrugated box making machine |
||

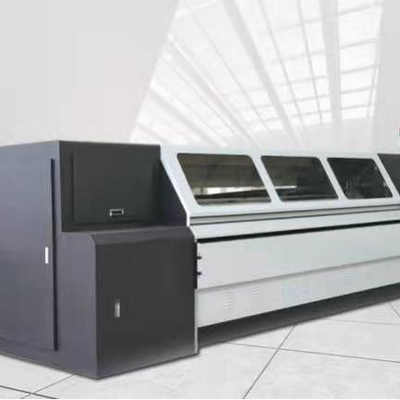

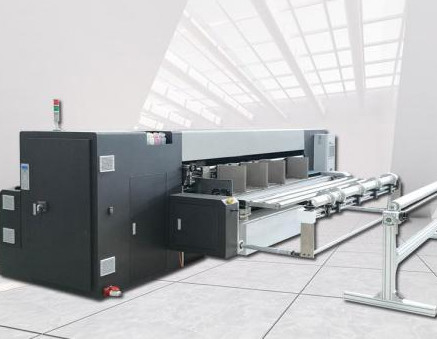

Flexo Digital Corrugated Carton Box Machine
Carton digital Printer
| Brand | Longrun Carton digital printer |
| Project | LR-ZX452 |
| Print head | HP452/Industrial nozzle |
| Nozzle number | 1--5 |
| Print size | min:40mm |
| Print span | min:1200mm |
| Ink type | Water-based ink,dye,pigment |
| Color | C M Y K |
| Lifting function | Intelligent ink car lifting, electronic automatic/manual intelligent induction detection and adjustment of height |
| Print thickness | 0-200mm adjustable |
| Load weight | 200KG |
| Material document | TIFF BMP JPEG CDR PSD JPG and other common formats are supported |
| Cleaning system | positive pressure cleaning ,each color separate pressure ink switch |
| Resolution | 300dpi/600dpi/900dpi/1200dpi |
| Speed | Low precision mode:60m/min |
| production mode:50m/min | |
| High precision mode;30m/min | |
| Interface | USB |
| Operating system | Windows7 /Windows8/Windows10/XP |
| Electric power | 50/60HZ,110/220VAC 1.0KW |
| Temperature | Temperature:15-35℃ humidity:20%-80% |
| Size | 2100*2000*1500mm |
| Weight | 800KG |
| Power | 5.5KW |
Use and characteristics
1.It eliminates the cumbersome processes such as plate making, plate making and color correction, and has an absolute advantage in small and medium-sized batch printing and urgent mail. All electronic patterns generated by typesetting, design software and office application software can be directly output to the printing press.The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
2.The printing press does not need plate making, no plate fee is generated, and the cost is saved; The printing machine does not need washing, no waste ink pollution, no waste gas flexographic generation, lower carbon and environmental protection.The printing ink is spread by the anilox cylinder with even ink color.
3.Comprehensive digitization can provide more flexible printing methods, that is, printing while changing and printing while changing, so as to realize zero inventory in the real sense. This flexible and fast printing method enhances the advantages of customers in the competitive environment of competing against every minute. Because the pattern design does not need the plate making of the traditional printing method, the design is more free, which can give full play to the professional ability of the designer, personalize and customize, and create suitable products for customers.360°continuous and adjustable longitudinal register device.
4.Due to the different working principle of printing press from traditional printing, there is no concept of "starting printing capacity". It can completely meet the requirements of printing on one sheet and waiting for approval. It breaks the limitation of the number of plates in the traditional printing mode, and can flexibly carry out various batch production. One person can complete the operation with one equipment, and the relative production space can be smaller.
5.The printing machine adopts inkjet printing technology. According to the printing effect of ink color, it can be divided into ink printing and UV printing.
