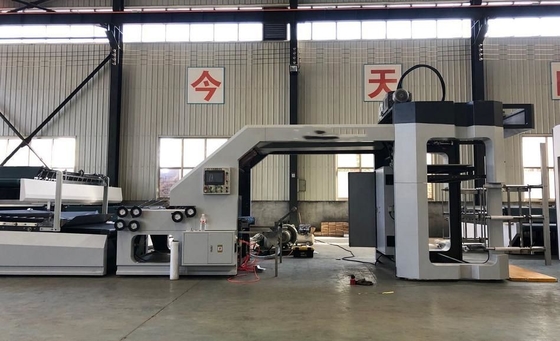

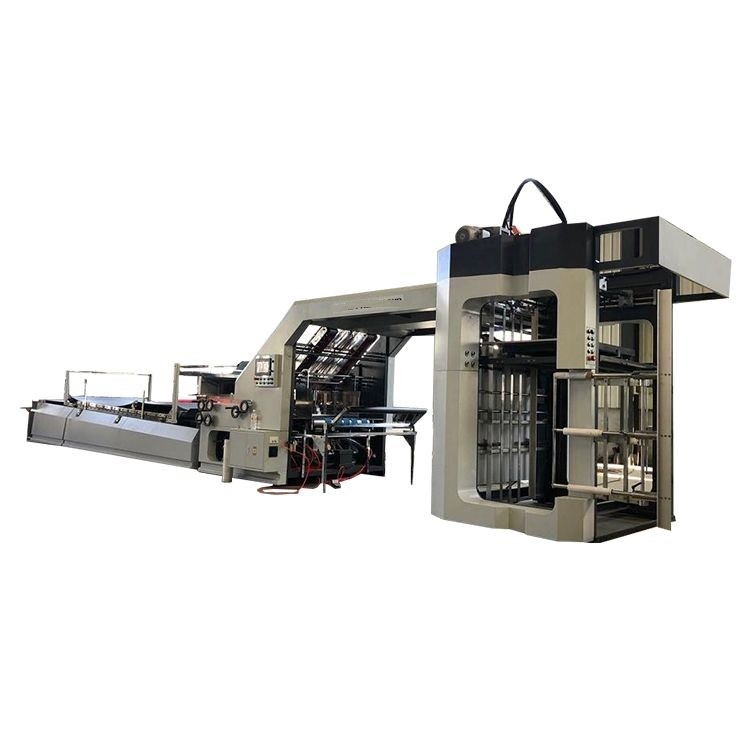

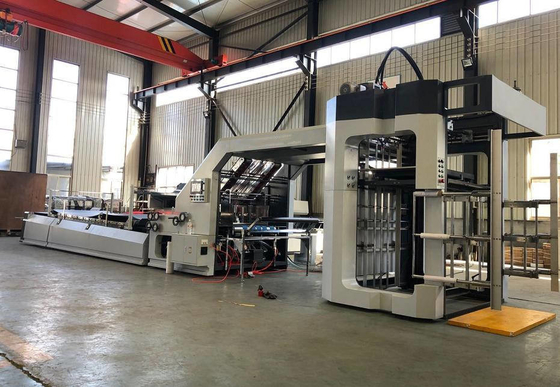

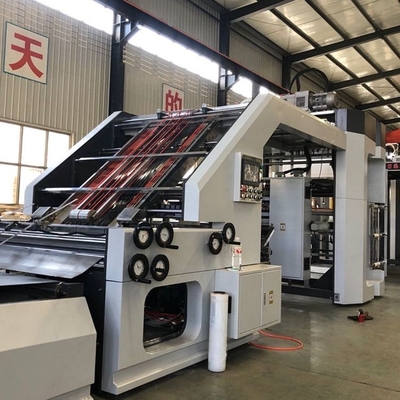

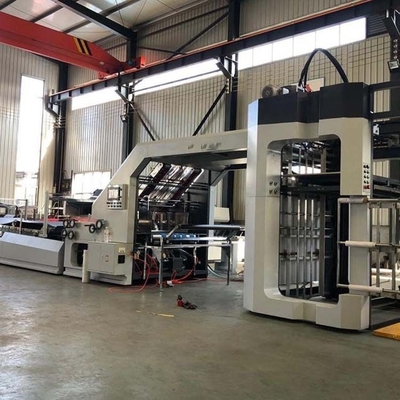

Flute Laminator Corrugated Carton Box Machine

Flute Laminator Corrugated Carton Box Machine
Flute Laminator Corrugated Carton Box Machine Flute Laminator Corrugated Carton Box Machine Flute Laminator Corrugated Carton Box Machine Flute Laminator Corrugated Carton Box Machine Flute Laminator Corrugated Carton Box Machine

Large Image :  Flute Laminator Corrugated Carton Box Machine

Product Details:
Place of Origin: CHINA
Brand Name: Hh
Certification: CE EAC
Model Number: 1300mm 1600mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: plastic
Delivery Time: 15-30 days
Payment Terms: T/T
Supply Ability: 10 sets every month
Contact Now

Flute Laminator Corrugated Carton Box Machine

Description
Application: Packaging Industry Option: Corrugated Carton Box Machine
Thickness Of Cardboard: 3 5 7 Cardboard Material: Corrugated Cardboard
Communication: English/Turkish/Russian/Spanish Size: 1300*11600mm
Glue Type: Normal Cold Glue Production Capacity: 6000 Boxes Per Hour
Thickness: 2-10mm

Flute Laminator Corrugated Carton Box Machine



Function and characteristics
1. The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient.
2.Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.
3. New concept front gauge location, position high accuracy, bottom sheet never pull ahead.
4. Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically.
5. Automatic gluing, and the glue can be used circulatory, avoid glue waste.
6. Roller design scientifically, avoid glue fly out when the speed is high.
7. Pressure rollers adopt one side adjustment, convenient and fast.
8. Rocker controls wash roller's fluctuation, easy cleaning.
9. Counter designs scientifically, easy recording the amount you have been worked.
Model
1300
1600
Max size of cover face
1300mmX1100mm
1600X1100
Mix size of cover face
400mmX400mm
400X400
Economic speed
0-120 piece/min
0-120 piece/min
Precision
±1.5MM
±1.5MM
Power
10kw
10kw
Size
10m x 2m x 2.4m
10m x 2m x 2.4m
Weight
About 5.5T
About 6.0T
