Product Details:
|

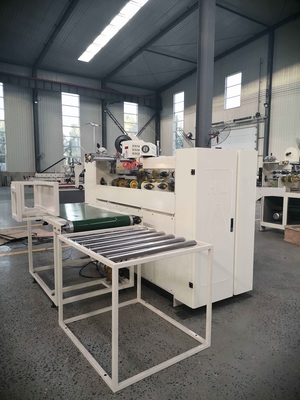

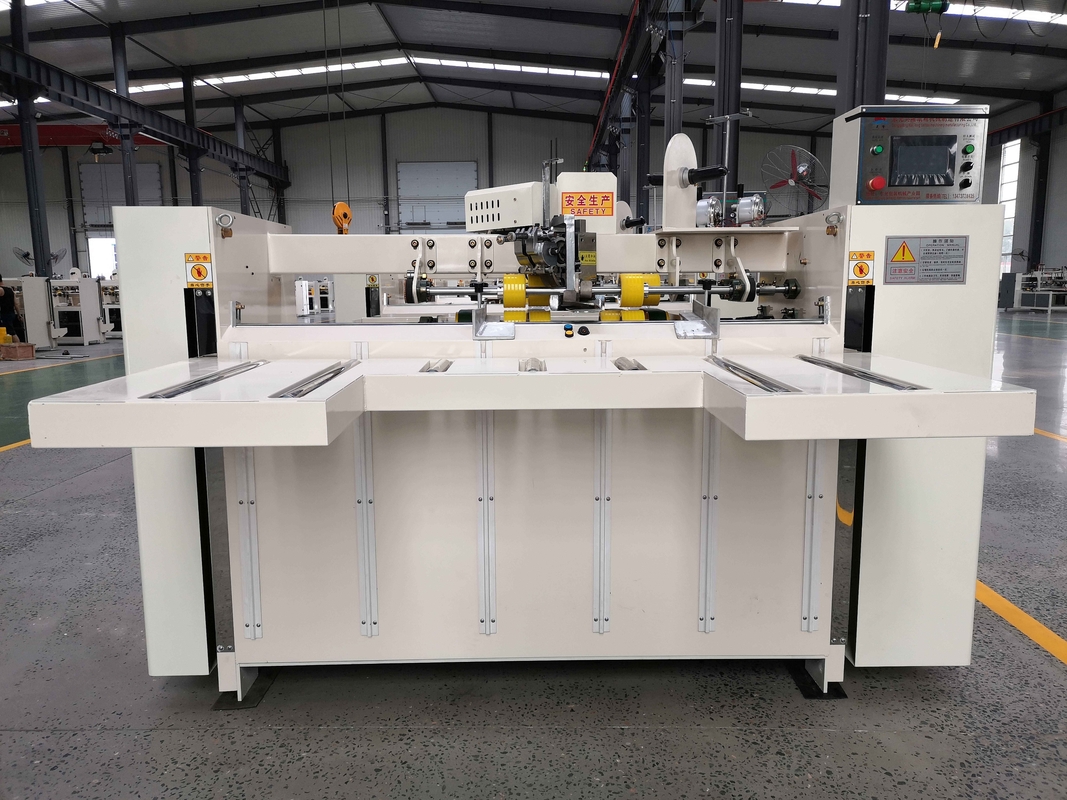

Stitch Nailing Sewing Corrugated Carton Box Machine
|
Model and parameters
|
SDJ-2000
|
SDJ-2400
|
SDJ-3000
|
|
|
Max paper size(A+B)*2(mm)
|
4000
|
4800
|
6000
|
|
|
Min paper size (A+B)*2(mm)
|
1060
|
1060
|
1060
|
|
|
Max carton length
|
2850
|
2850
|
2850
|
|
|
Mix carton length
|
350
|
350
|
350
|
|
|
Max carton width B
|
1000
|
1200
|
1500
|
|
|
Min carton width B
|
120
|
120
|
120
|
|
|
Max paper heigth(C+D+C)
|
2500
|
2500
|
2500
|
|
|
Min paper heigth(C+D+C)
|
400
|
400
|
400
|
|
|
Max swing cover C(mm)
|
560
|
560
|
560
|
|
|
Min swing cover C(mm)
|
50
|
50
|
50
|
|
|
Max height D (mm)
|
2000
|
2000
|
2000
|
|
|
Min height D (mm)
|
150
|
150
|
150
|
|
|
Max tongue width (mm)
|
45
|
45
|
45
|
|
|
Stitch distance (mm)
|
30-120
|
30-120
|
30-120
|
|
|
Stitch NO.
|
1-99
|
1-99
|
1-99
|
|
|
Stitching speed (nails / minute)
|
600
|
600
|
600
|
|
|
Machine weight (T)
|
2.5
|
3
|
3.5
|
|
