Product Details:
|
Name: | Semi Automatic Corrugated Box Carton Folder Gluer Machine | Warranty: | One Year |
---|---|---|---|
After Warranty Service:: | Video Technical Support, Online Support, | Voltage: | 380v/50hz 220v/60hz |
Driven Type: | Electric , Pneumatic | Max.size: | 1500*2800mm |
Min.size: | 350*900mm | Model: | 2800mm |
Feeding Way: | Manual | Glue Type: | Water-base Cold Water |
Function: | Carton Folder Gluer Machine | Speed: | 100pcs/min |
Highlight: | ZXJ-2800 Carton Folder Gluer Machine,Carton Folder Gluer Machine 2800mm,Box Folder Gluer machine |

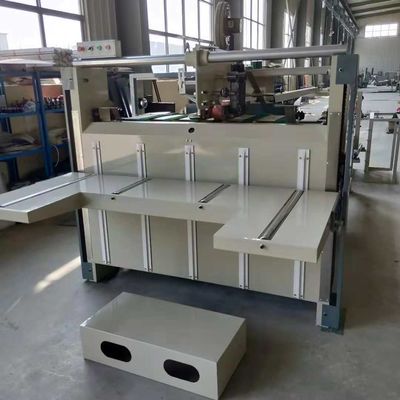

Semi automatic corrugated box Carton Folder Gluer Machine
Put the prepared glue into gluer bucket,press each switch button,when everything is in order,
turn on the switch below gluer bucket,enable the glue successfully into the head of gluer,
then well remove carton,so one side of the carton can be well-distributed glue when across bottom of the head gluer while the other side of carton can be firmly joint together after middle press- roll pressing.
Main specifications:
Model | ZXJ-2600 | ZXJ-2800 |
Max size (L+W)*2 | 2460mm | 2800mm |
Min size (L+W)*2 | 340mm | 340mm |
Max size(W+H)*2 | 1515mm | 1515mm |
Min size (W+H)*2 | 240mm | 260mm |
High of feeder | 900mm | 1000mm |
Power | 4kw | 4kw |
Machine length | 5300 | 5300mm |
Machine weight | 2470 | 2150kg |
Machine speed | 40m/min | 60m/min |
Features
1. folder gluer machine fix the machine,adjust the screws of four corners,update balance and well fix screws.
2. go through the power line(380v pressure)together with paper conveyor,then lock up screws.
3. test at entire machine,press the switch on the front, middle and paper conveyor belt.
if the conveyor belt would move normally beginning to end,it says the running
direction of conveyor belt is all right.otherwise,
