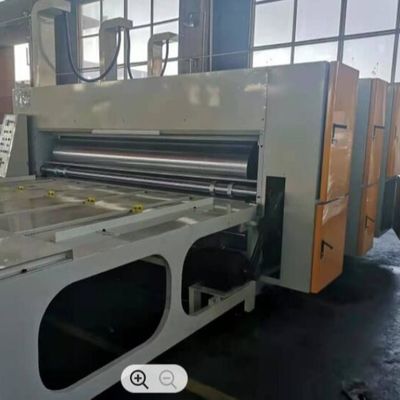

2600mm Semi Automatic Die Cutting Machine Flexo Printer Slotter 30kw

2600mm Semi Automatic Die Cutting Machine Flexo Printer Slotter 30kw
2600mm Semi Automatic Die Cutting Machine Flexo Printer Slotter 30kw

Large Image :  2600mm Semi Automatic Die Cutting Machine Flexo Printer Slotter 30kw

Product Details:
Place of Origin: CHINA
Brand Name: Hh
Certification: CE
Model Number: 1200*2600mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: plastic
Delivery Time: 30-60 days
Payment Terms: T/T, L/C
Supply Ability: 5 set every month

2600mm Semi Automatic Die Cutting Machine Flexo Printer Slotter 30kw

Description
Name: High Speed Automatic Flexo Printer Slotter Die Cutter Machine Automatic Grade: Automatic
Warranty: 1 Year Speed: 150-200pcs/min
Functioin: Printer And Make The Carton Box After-sales Service Provided: Field Maintenance And Repair Service, Field Ins
Application: Corrugated Carton Box Color: One Two Three Four Five
Cardboard Thickness: 2-18mm Voltage: 380v/50hz 220v/60hz
High Light:

2600mm semi automatic die cutting machine

,

Die Cutting Machine 30kw

,

Flexo Printer Slotter 30kw

High Speed Automatic Flexo Printer Slotter Die Cutter Machine

    This product can complete two-color printing, cutting, indentation, trimming, slotting, etc. Adopt leading edge positioning automatic paper feeding mechanism, air volume adjustable, mainframe frequency conversion control


Main specification

achine width 2400mm
Design speed 200 (piece/min)
Work speed 180 (piece/min)
Max.cardboard size 2200*900mm
Min.cardboard 450*270mm
max.printer cardboard 2000*900mm
skip cardboard 2200*1000mm
Max. Die cut cardboard 2000X900mm
the plate thickness 7.2mm
Motor 18.5kw
Fan motor 7.5kw
Clean dirty motor 4kw
Work power 30kw
Printer Presicion ±0. 5mm
Die cut precision ±1mm





function and characteristic



  1.  Whole machine frame and important part are being aging treatment, tempering eliminate the stress of metallic; all of them come from high precision processing center, CNC grinding machining process.
  2.  All the rollers are high quality steel, high precision Computer dynamic balancing correction of hard chromium plating, surface grinding.
  3.  The transmission gear adopt 40 CrMin Ti high quality alloy steel which is grinded, and after the heat treatment ,it can up to six precision, Its surface with rockwell hardness HRC58-62, make color more accuracy.
  4.  All machine transfer unit (roller , gear connect ) adopt shrink disk connect . clearance of conncetion .used to long time high speed running .

2600mm Semi Automatic Die Cutting Machine Flexo Printer Slotter 30kw 0

2600mm Semi Automatic Die Cutting Machine Flexo Printer Slotter 30kw 1
