Product Details:
|
Name: | Automatic Corrugated Box Line Printer Slotter Die Cutte | Automatic Grade: | Automatic |
---|---|---|---|
Warranty: | 1 Year | Speed: | 150-200pcs/min |
Functioin: | Flexo Printer Slotter Die Cutter | After-sales Service Provided: | Field Maintenance And Repair Service, Field Ins |
Feeding Model: | Vacuum Suction | Color: | One Two Three Four Five |
Cardboard Thickness: | 2-18mm | Voltage: | 380v/50hz 220v/60hz |
Core Components: | Gear, Bearing, Motor, PLC | Max.cardboard Size: | 1200*2600mm |
High Light: | 220v Corrugated Box Production Line,Corrugated Box Die Cutting Machine 60hz,Printer Slotter Machine |

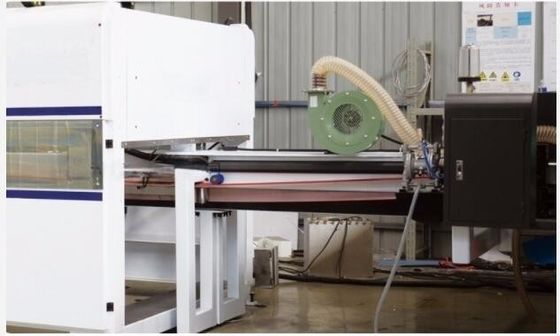

Automatic Corrugated Box Line Printer Slotter Die Cutte
Designed According the high request and the reliable function,the operation of the machine is humanization,can accomplish the setting,revision, implement, replacing and memories function in a shot time,and display with a exact data.
All the drive rollers adopted high quality steel materials,hard chromium plating and the surface treated by lapping finish.
The drive gears adopt high quality alloy steel,after heat treatment and lapping finish.
Parameter | Unit | Model | ||||
950 1800 |
950 2000 |
950 2200 |
4212 2200 |
4212 2400 |
||
Max. machinery speed | pcs/min | 200 | 200 | 200 | 180 | 180 |
Economic printing speed | pcs/min | 160 | 160 | 160 | 150 | 150 |
Max. size of paperboard | mm | 950×2000 | 950×2200 | 950×2400 | 1300×2400 | 1300×2600 |
Min. size of paperboard | mm | 260×500 | 260×500 | 260×500 | 350×800 | 350×800 |
Min. space of slotting (Obverse knife) |
mm | 140×140×140×140 | 150×150×150×150 | |||
Min. space of slotting (Reverse knife) |
mm | 260×60×260×60 | 280×60×280×60 | |||
Max. depth of slot | mm | 240 | 240 | 240 | 300 | 300 |
Skip feed size | mm | 1200×2000 | 1200×2200 | 1200×2400 | 1500×2400 | 1500×2600 |
Max. printing area | mm2 | 950×1800 | 950×2000 | 950×2200 | 1300×2200 | 1300×2400 |
Thickness of standard printing plate |
mm | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
function and characteristic
1. The printing roller adopt without gap roller,surface is treated by lapping finish,after balance correct and hard chrome plating,smooth is operation.
2. Quickly change printing plate device,foot switch for electric control the printing roller’s clockwise and anticlockwise running.
3 The feed roller,press roller, rubber roller and anilox roller space adjustment all adopt self-locking structure.
4 The phase of the printing roller adopt PLC and electric 360°adjust,accord the error to input the adjust date,can be adjusted while the machine running or stop.
