Product Details:
|
| Name: | High Speed Automatic Flexo Printer Slotter Die Cutter Machine | Warranty: | 1 Year |
|---|---|---|---|
| Speed: | 180pcs/min | Application: | Corrugated Carton Box |
| Color: | Customer's Request | Cardboard Thickness: | 2-18mm |
| Voltage: | 380v/50hz 220v/60hz | Core Components: | Motor, PLC, Engine |
| Type: | Flexo Printer Slotter Die Cutter Machine | Automatic Grade: | Full Atuomatic, Computerized |
| Usage: | Paperboard Corrugated Carton Box Making | Material: | High Quality Steel Materials |
| High Light: | 7.5kw Fan Corrugated Box Printer,Box Printer Slotter Die Cutter,Slotter Die Cutter Machine |
||

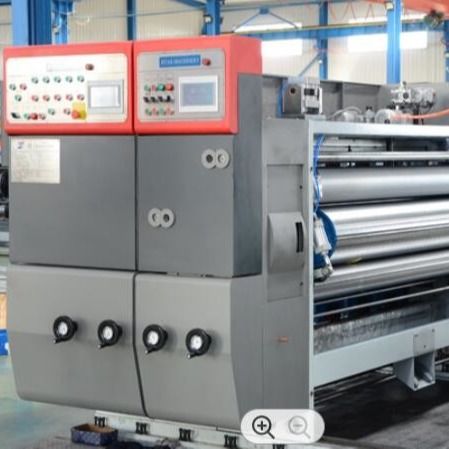

High Speed Corrugated Box Printer Slotter Die Cutter Machine
Control system: Delta PLC, production order c
an be saved and recalled to save changing time. Memorize system for easy operation and maintenance.
| Printing units | can be chosen according to users' needs |
| Printing Paperboard | A.B.C.E 3/5/7 ply corrugated board |
| Machine Speed | 180 sheets/min |
| Max. Paper Size | 900×2200 mm |
| Max. Printing Size | 900×2000mm |
| Max. die cutting size | 900×2150mm |
| Min. Paper Sizes | Positive knife260×600mm; inverse knife 260×680mm |
| Standard Printing Plate Thickness | 4-9mm |
| Cardboard thickness | 2-11mm |
| Max. Paste Width | 50mm |
| Max. stacking height | 1600mm |
Function and characteristic
1) Four rows wheels type lead edge feeding system , easy operation , high precision.
2) The lead edge wheels adopt Maxdura brand from Taiwan , durable Wear Resistant .
3) 7.5kw fan , air suction auxiliary paper feeding, according to the bending degree of the board, adjustable air volume to ensure smooth paper feeding. Variable frequency control the air volume.
