Product Details:
|
Function: | Semi Auto Corrugated Cardboad Flute Laminating Machine | Automatic Grade: | Automatic |
---|---|---|---|
Warranty: | One Year | Speed: | 6000pcs/hour |
Application:: | Beverage, Chemical, Commodity, Food | Driven Type:: | Electric |
Voltage: | 380v/50hz 220v/60hz | Dimension(L*W*H):: | 13000*3000*3500mm |
Corrugated Board:: | A,B,C,D,E,F,3 Layers,5 Layers | Weight: | 4500kg |
Max.paper: | 1300*1100mm | Certification: | CE ISO9001 |
Highlight: | 1300mm Flute Laminating Machine,Flute Laminating Machine 4500kg,1300mm Corrugated Laminating Machine |

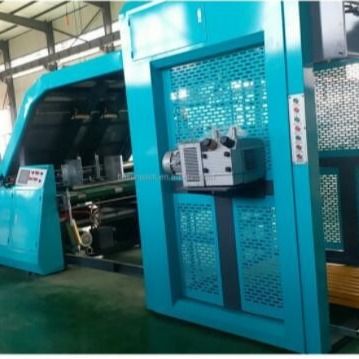

Semi Auto Corrugated Cardboad Flute Laminating Machine
Tumup bridge plate is convenient for cleaning, discontinuous water-circulating system ensures washing clean.
Automatic feeding for bottom sheet, manual feeding for top sheet (feeding from side for top sheet is optional).
Main specification
Model | 1300B | 1450B | 1600B |
Max sheet size | 1300×1100mm | 1450×1100mm | 1600×1100mm |
Min sheet size | 320×450mm | 320×450mm | 320×450mm |
Total power | 7kw | 7kw | 7kw |
Speed | 0-90m/min | 0-90m/min | 0-90m/min |
Weight | 3.5T | 4T | 4.5T |
Overall Dimensions | 8800×2200×1700mm | 8800×2350×1700mm | 8800×2500×1700mm |
Features
1. Tumup bridge plate is convenient for cleaning,discontinuous wate-circulating system ensures washing cleam.
2. Automatic feeding for bottom sheet,manual feeding fortop sheet (feeding fom side for top sheet is optional).
3. Flexible font register,bottom sheet is not exceeding the top sheet ,and it's adjustable for the front-and-rear lamination between ottom sheeet and top sheet.
4. Bottom sheet can be paperboard more than 350gsm, A/B/C/D/E/F corrugated cardboard.
5. Lnedlligemt control and compacted energysaving and controlling play from the stack of paper.
6. Using hight-precision plastic block device,sace glue.
