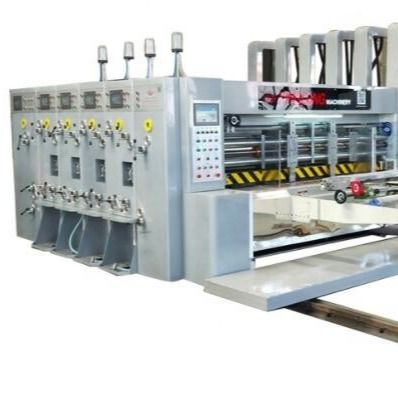

130 1224 High Speed Rotary Slotting Machine Flexo Printer Die Cutter

I'm Online Chat Now

130 1224 High Speed Rotary Slotting Machine Flexo Printer Die Cutter

130 1224 High Speed Rotary Slotting Machine Flexo Printer Die Cutter
130 1224 High Speed Rotary Slotting Machine Flexo Printer Die Cutter
130 1224 High Speed Rotary Slotting Machine Flexo Printer Die Cutter 130 1224 High Speed Rotary Slotting Machine Flexo Printer Die Cutter

Large Image :  130 1224 High Speed Rotary Slotting Machine Flexo Printer Die Cutter

Product Details:
Place of Origin: CHINA
Brand Name: Hh
Certification: CE
Model Number: 1400*2600mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: plastic
Delivery Time: 15-30 days
Payment Terms: T/T, L/C
Supply Ability: 10 sets every month

130 1224 High Speed Rotary Slotting Machine Flexo Printer Die Cutter

Description
Function: Produce Corrugated Carton Speed: 180pcs/min
Automatic Grade: Automatic Model: 1400*2600mm
Name: Semi Auto Corrugated Cardboard Rotary Slotting Machine Type: Automatic Rotary Slotting
Usage: Making Carton Power: 15.5kw
Packaging Type: Rotary Slotting Condition: New
Core Components: PLC, Gearbox, Gear Showroom Location: Viet Nam, Saudi Arabia, Indonesia, Mexico
High Light:

130 1224 Rotary Slotting Machine

,

Flexo Printer Rotary Slotting Machine

,

130 1224 High Speed Rotary Die Cutter

High Speed Carton Flexo Printing Slotting Rotary Die Cutting Machin

   Use tHigh Speed Carton Flexo Printing Slotting Rotary Die Cutting Machinhe combination chain style on feeding table.

• Adopt planet style digital electrical adjustment of 360 degree whatever operating and stop quickly and accurately.
• Ink roller can be detached automatic from printing plate to avoid damage the printing plate.
• Pneumatic lock , electric divides.



Main specification

Model 150-1022 130-1224 120-1426
Machine inside width (mm) 2400 2600 2800
Max feeding paper siz(mm) 1000*2200mm 1200mm*2400mm 1400*2600mm
Max effective printing size(mm) 1000*2000mm 1200mm*2200mm 1400*2400mm
Min coverage size(mm) 350*700mm 350mm*700mm 350mm*700mm
Design speed (pcs/min) 150pcs/min 130pcs/min 120pcs/min
Working speed (pcs/min) 130pcs/min 120pcs/min 100pcs/min
Standard Thickness of printing plate 6mm 6mm 6mm
Printing precision ±0.5mm ±0.5mm ±0.5mm
Thickness of cardboard 1.2-9mm 1.2-9mm 1.2-9mm
Wall thickness 40mm 40mm 40mm
Main motor power About :15kw About :15kw About :15kw



Features and characteristic:

1, Designd according to high request and reliable function, humanization operation that can setting, revision, implement, changing and memories in short time, and display data.

2, All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded

3, Drive gears adopt high quality steel with heat treatment with grinded

4, The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision

5, Engineer oil automatic balance device, keep the oil level equal in each unit
