Product Details:
|
| Automatic Grade: | Semi Auto | Model: | 1400*2600mm |
|---|---|---|---|
| Name: | Semi Auto Corrugated Cardboard Rotary Slotting Machine | Type: | Automatic Rotary Slotting |
| Usage: | Making Carton | Power: | 7.5kw |
| Packaging Type: | Rotary Slotting | Condition: | New |
| Adjust Way: | Manual | Machinery Test Report:: | Provided |
| High Light: | 11kw Rotary Slotting Machine,Rotary Slotting Machine SZ 1455*2500,11kw Rotary Creasing Machine |
||

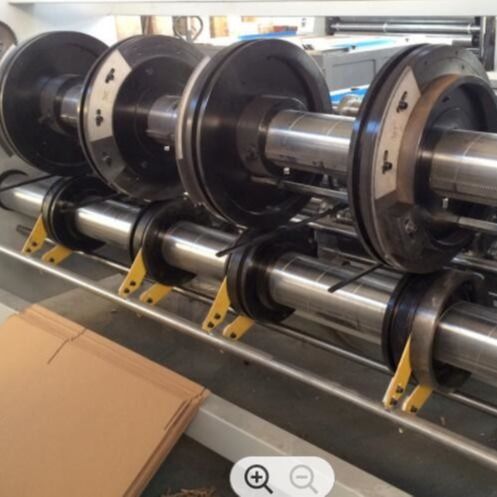

rotarSlotting Machine
Use the combination chain style on feeding table.
Main specification
| Model | SZ-1455*2500 | SZ-1855*2600 |
| Max. paper size | 1400*2500mm | 1850*2600 |
| Max. slotting depth | 400mm | 400mm |
| Max. speed (piece/min) | 120pieces/min | 120pieces/min |
| Min front size | 260mm | 260mm |
| Min paper size | 400*640mm | 400*640mm |
| Min side size | 60mm | 60mm |
| Slotting width | 7.5mm | 7.5mm |
| Boundary dimension | 3100*3800*2020mm | 3600*3800*2020 |
| Total weight | 6500kg | 7200kg |
| Power | 5.5kw | 11.5kw |
| Total power | 11kw | 13kw |
1. Height of back paper bearing shelf can be adjust free. And it can move front and backward easy.
2. With polyurethane PU delivery gear, with Super wear resistance and durability
3. e PU front paper feed wheel core adapt precision alloy, long service life, high precision
4. Can be send paper board skip.
5. Infrared photoelectric counter, the order processing quantity, display production quantity
