Product Details:
|
| Name: | Corrugated Carton Box Flexo Printer Slotter Die Cutter And Stacker | Speed: | 150-220pcs/min |
|---|---|---|---|
| Cardboard Thickness: | 2-18mm | Core Components: | Motor, PLC, Engine |
| Certification: | CE ISO9001 | Showroom Location: | Egypt, Turkey, Viet Nam, Brazil, Peru, Saudi Arabia, Pakistan, Indi |
| Usage: | Making Carton | Printer Roller Diameter: | 280mm |
| Machinery Test Report:: | Provided | Max.cardboard: | 900*2800mm |
| Min.cardboard Size: | 230*600mm | Warranty Of Core Components: | One Year |
| Key Selling Points: | High Safety Level | Voltage: | Client Require |
| Highlight: | corrugated box printer slotter machine,carton box printer slotter die cutter,printer slotter die cutter and stacker |
||

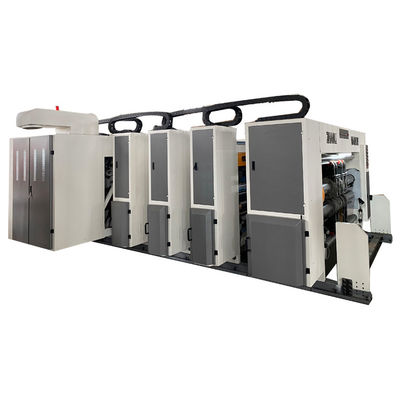

Corrugated Carton Box Flexo Printer Slotter Die Cutter And Stacker
1. Spray circulated oil lubrication.
2. Return to zero and adjust printing plate automatically.
3. Module-designed. Multicolor printing sections can be combined as your requests.
4. The side baffle of feeder and slotter are all adjusted electrically.
5. PLC, touch screen and frequency-variable controller are adopt,accurate and reliable.
|
echnological Parameter
|
|
|
Printing Unit/Color
|
1-5 colors , can be customized by customer requirements
|
|
Printing Paperboard Thickness
|
3-10mm
|
|
Machine Max Speed
|
200 pieces/min
|
|
Max Feeding width
|
2300x900mm
|
|
Min Feeding Size
|
230x600mm
|
|
Precision Of Process Printing
|
± 0.5mm
|
|
Standard Printing Plate Thickness
|
7.2 mm
|
|
Max Edge Width of Carton
|
50mm
|
|
Min Slotting Distance
|
230x60x230x60
|
Company & Workshop
Our company is Longway Carton Machinery Co.,Ltd founded in 1998,is located to the south of Beijing and north of Jinan city.It has conveniet land and sea facilities. We are a professional enterprise with large scale to produce corrugated carton machinery and flexo ink printing slotting die cutting machinery,folder gluer machine,flute laminator machine,carton stitcher machine,die cutting creasing machine,thin blade slitting scorer machine etc.Our company has 80 staff and workers.There are 10 engineering and technical staff with senior post.We have our own processing center. With rich manufacturing experience ,advanced overhauling measures and integrated managing system ,our company can meet the demand of different clients.Reasonable price and perfect after-sales services,these make our products had won the trust and praise from the clients all over the world.
