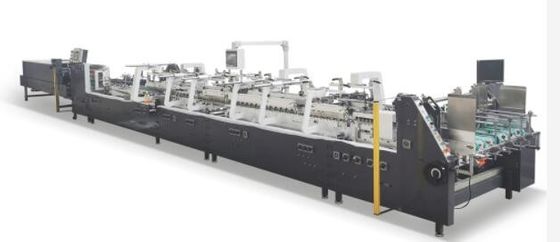

4 And 6 Corner Continuous Carton Folder Gluer Machine High Speed

4 And 6 Corner Continuous Carton Folder Gluer Machine High Speed
4 And 6 Corner Continuous Carton Folder Gluer Machine High Speed

Large Image :  4 And 6 Corner Continuous Carton Folder Gluer Machine High Speed

Product Details:
Place of Origin: CHINA
Brand Name: Hh
Certification: CE
Model Number: 1200mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: plastic
Delivery Time: 15-30 days
Payment Terms: T/T, L/C
Supply Ability: 10 sets every month
Contact Now

4 And 6 Corner Continuous Carton Folder Gluer Machine High Speed

Description
Name: High Speed 4 And 6 Corner Carton Folder Gluer Machine After Warranty Service:: Video Technical Support, Online Support,
Voltage: 380v/50hz 220v/60hz Driven Type: Electric , Pneumatic
Speed: 60pcs/min Condition: New
Dimension(l*w*h): 5500*850(1300)*1300mm Box Forming: Both Sides Fold
Color: Client Request Core Components: Engine, Motor
Packaging Material: Plastic, Wood Weight: 2500kg
Highlight:

6 corner carton folder gluer machine

,

4 corner carton folder gluer

,

continuous carton folder gluer machine

High Speed 4 And 6 Corner Carton Folder Gluer Machine

   The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately.

Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.



Main specification



Automatic High Speed 4 and 6 Corner Folder Gluer
Model
1100
Paper Material
Cardboard 210-800gsm, A/B/E Flute
Max.Speed
400m/min
Max.Thickness of Folded Box
12mm
Way of Folding
Fold 1 and fold 3 are
180°and 165°,fold 2 and fold 4 are 180°
Power Supply
3P 380V 50HZ
Blank Width
1100mm
Length x Width x Height
15x1.53x1.3m
Net Weight
7.5T
Total Power
31.18Kw

Features

1. Line speed: 0~220m/min adjustable
2. Paperboard: 210~600g/m2 paperboard
3. Box forming:Either side folds, either sides pre-fold, and crash lock bottom
4. Paper board feeding: Continuous automatic
5. Way of folding: First, second and fourth lines fold 180°, third line fold 135°

4 And 6 Corner Continuous Carton Folder Gluer Machine High Speed 0



Packing&Shipping

4 And 6 Corner Continuous Carton Folder Gluer Machine High Speed 1

4 And 6 Corner Continuous Carton Folder Gluer Machine High Speed 2

FAQ
Q:Are you a manufacturer or a trade company?
A: We are a manufacturer, and we have our own foreign trade department, we market our own products.

Q:Can you provide custom products?
A: Yes, according actual production demand of customer industry,we can help customer choose corresponding configuration and
improve its function, at the same time, we can research and develop new functions according to customer's requirements.

Q:How can you ensure your product quality?
A: We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on
international standards according to customer's requirements. We have advanced inspection equipments, which can ensure the high
quality of the finished products, and meet customer's inspection requirement.

Q:Payment?
A: We will confirm the payment with you when quoting, like FOB, CIF or others. we accept 30% deposit, and shipping after paying
the balance . T/T is the main payment, and L/C is acceptable as well.

Q: Where do you mainly export your products?
A: Our products are mainly exported to the US, the UK, Russia, Uzbekistan, Vietnam, Indonesia, Thailand, Iran, India, Egypt, Saudi
Arabia, Oman, Chile, Argentina, Jordan, etc

Q: Do you have overseas after-sales service departments?
A: Yes, we have professional engineer service teams in overseas countries. We will provide customers with convenient and efficient
after-sales service.
