Product Details:
|
| Function: | Corrugated Cardboard And Paper Face Laminate | Automatic Grade: | Automatic |
|---|---|---|---|
| Warranty: | One Year | Maximum Speed: | 8000pcs/h |
| Application:: | Beverage, Chemical, Commodity, Food | Driven Type:: | Electric |
| Voltage: | 380v/50hz 220v/60hz | Dimension(L*W*H):: | 1300*3000*3500mm |
| Down Paper Thickn: | 300g-10mm A-F Flute | Minimum Paper: | 450*450mm |
| Core Components: | PLC, Gearbox, Gear | Packaging Type: | Cartons, Film, Case |
| Power: | 14kw | ||
| High Light: | plc flute laminator,corrugated semi automatic flute laminating machine,plc semi automatic flute laminating machine |
||

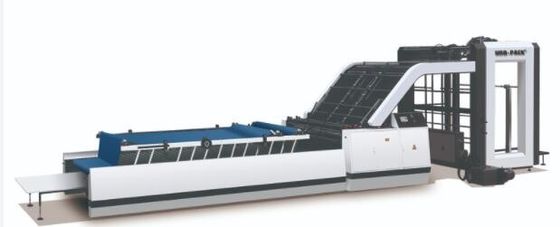

Adsorption Corrugated Cardboard Semi-Auto Flute Laminating Machine
The machine adopts chain pusher and back registration system together with spring blade side lay and vacuum sucking conveying system makes this serise of machine fit for a larger range of paper, high precision while remaining the features of easy operation and maintenance. the whole machine adopts the programe of PLC, prewarning equipment.
Main specification
| Model | 1300 | 1450 | 1600 |
| Max sheet size | 1300mm*1200mm | 1450mm*1100mm | 1600mm*1200mm |
| Min sheet size | 360mm*360mm | 360mm*360mm | 360mm*360mm |
| Mechanical speed | 0-65m/min | 0-45m/min | 0-45m/min |
| Weight | about 3000kg | about 3300kg | about 3600kg |
| Total power | 4.5kw | 4.3kw | 4.3kw |
| Surface paper(card paper) | ≥200g/m2 | ≥200g/m2 | ≥200g/m2 |
| Base paper(card paper) | ≥250g/m2 | ≥250g/m2 | ≥250g/m2 |
Features
1. Tumup bridge plate is convenient for cleaning,discontinuous wate-circulating system ensures washing cleam.
2. Automatic feeding for bottom sheet,manual feeding fortop sheet (feeding fom side for top sheet is optional).
3. Flexible font register,bottom sheet is not exceeding the top sheet ,and it's adjustable for the front-and-rear lamination between ottom sheeet and top sheet.
4. Bottom sheet can be paperboard more than 350gsm,A/B/C/D/E/F corrugated cardboard.
5. Lnedlligemt control and compacted energysaving and controlling play from the stack of paper.
6. Using hight-precision plastic block device,sace glue.
Our company speciaized in carton machinery for many years in China. Our main products are: high speed automatic flute laminator/ semi-automatic flute laminator/ high speed single facer machine/ corrugated cardboard making line and so on. Our quality is high and price is low, hope we could build a long term business relations. Dongguang Hairuibao Carton Machinery Co., Ltd. is located in the south of Beijing and north of Jinan, so we have convenient land and water facilities. We are a professional enterprise with a large scale to produce carton machinery and printing machinery. Our company has 80 workers including 10 engineering and technical staff members with senior titles. Our company has capability of product design and perfect quality guarantee system. With perfect technology, complete machine, high specialization degree, rich manufacturing experience, strong technical force, advanced overhauling measures and integrated managing system, our company is like an up-and-coming youngster in the carton printing machinery industry in China. Part of the printing machines made by our company are exported to Southeast Asia, Western Asia, the Middle East and South America
