Product Details:
|

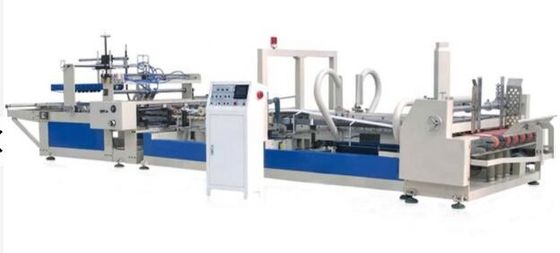

Name: | SAutomatic Or Semi Auto Carton Folder Gluer Machine | Warranty: | One Year |
---|---|---|---|
Voltage: | 380v/50hz 220v/60hz | Driven Type: | Electric , Pneumatic |
Function: | Carton Folder Gluer Machine | Speed: | 0-60pcs/min |
Core Components: | PLC, Gearbox, Gear | Condition: | New |
Place Of Origin: | Hebei, China | Max Size (L+W)*2: | 2800mm |
High Of Feeder: | 1200mm | Weight: | 4000kg |
Key Selling Points: | Easy To Operate | ||
Highlight: | 2800mm carton gluer machine,gearbox carton gluer machine,gearbox carton folder gluer |
Features :
1)the average speed of gluing box is 8000-10000pcs / hour, speed is very fast , greatly improve production efficiency.
2) automatic feeding, automatic glue, automatic folding, automatic calibration, automatic counting, only two people can complete the whole process.
3) the suction belt feeding way, simple structure, fast speed, paper accurately.
4) the nail tooth belt feed, feed accuracy;and it has secondary indentation function, make folding cartons more accurately.
Feeding unit :leather belt feeder with vacuum suction
1.feeder belt made of leather belt with holes , vacuum suction for supporting paperboard feeding .
2.Available for feeding bent paperboard .
3.Clutch and break function adopted in feeding unit ,enable to feed paper or stop separately ,easy to operation and control.
Secondary correction unit:
eliminate the size of the different mouth, improve Percent of pass.
Correction by differential speed unit :
Using belt speed differences to correct the folding again .
Receiving paperboard&shape adjusting unit :
receiving paperboard unit can automatic counting, shape adjusting then stacking , all carton can be piled up according to a certain quantity , then output , high speed and precision.
Main Technical parameters
Model
|
2000
|
2400
|
2800
|
Max cardboard
|
1000 x 1200 mm
|
1000 x 2400 mm
|
1200 x 2800 mm
|
Min cardboard
|
300 x 680 mm
|
300 x 800 mm
|
300 x 800 mm
|
Power required
|
11.5 kw
|
11.5 kw
|
11.5 kw
|
