2800mm Fullyautomatic Corrugated Box Gluer For Carton

2800mm Fullyautomatic Corrugated Box Gluer For Carton
2800mm Fullyautomatic Corrugated Box Gluer For Carton 2800mm Fullyautomatic Corrugated Box Gluer For Carton 2800mm Fullyautomatic Corrugated Box Gluer For Carton 2800mm Fullyautomatic Corrugated Box Gluer For Carton

Large Image :  2800mm Fullyautomatic Corrugated Box Gluer For Carton

Product Details:
Place of Origin: CHINA
Brand Name: Hh
Certification: CE
Model Number: 2800mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: plastic
Delivery Time: 15-30 days
Payment Terms: T/T
Supply Ability: 10 sets every month
Contact Now

2800mm Fullyautomatic Corrugated Box Gluer For Carton

Description
Type: Making Glue Machine Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Home
Showroom Location: Indonesia, Mexico, Thailand, Poland, Chile , Russia Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Corrugated Carton Box
Core Components: Pressure Vessel, Bearing, Motor, PLC Condition: New
Driven Type: Electric Warranty: One Year
Glue Type: Normal Cold Glue Feed Type: Automatic Belt
Highlight:

fullyautomatic corrugated box gluer

,

2800mm corrugated box gluer

,

2800mm automatic carton folder gluer machine

2800mm Fully Automatic Corrugated Carton Folder Gluer Machine

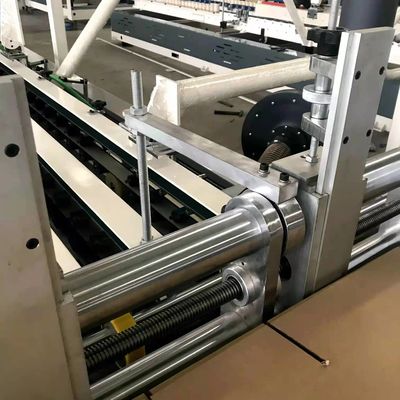

      Automatic folder gluer machine mainly consists of three parts: feeding part, folding gluing part and stacking counting part, full machine frame made by good quality steel welded .
It adopts PLC programming control, touch screen operation and frequency conversion to adjust speed. The average speed about 150sheets/min, with high speed, saves power and labor.



Feeding part
Belt type lead edge with vacuum suction feeding system is more better to feed bend board
Good quality electromagnetic clutch and brake system, feeding part can be controlled separately, easy operation.
Scorer wheel is adjustable, it suit to cardboard thickness 2-8mm
It can do second scorer, so correct bad creased board.
2800mm Fullyautomatic Corrugated Box Gluer For Carton 0
2800mm Fullyautomatic Corrugated Box Gluer For Carton 1
2800mm Fullyautomatic Corrugated Box Gluer For Carton 2
Folding & gluing part
Simple structure, glue amount can be adjustable, easy clean
It adopts stainless steel gluing wheel, gluing even, no fault save glue amount.
Automatically gluing, recycle glue, never stop, don’t need add glue by hand, save time and power.
Imported wearable rubber belt convey board, automatically folding.
Equipped with board correction and scorer correction device.
2800mm Fullyautomatic Corrugated Box Gluer For Carton 3
2800mm Fullyautomatic Corrugated Box Gluer For Carton 4
Counting & Stacking part
Stacking and counting are simple and reliable
Digital control, easy operation and reliable. Non-stop enter data, automatically counting and output accurately.
With correction function, correct deviation
Counting and output by pneumatic control, fast and accurately
Specification
Model
2800
Max cardboard size
1200×2400
Max cardboard size
170*425
Dimension
L12500*W3200*H1600
Motor power
12kw
Machine weight
6500kg
