Product Details:
|
Product Name: | Small Lock Bottom Box Carton Automatic Folder Gluer Machine | Function: | Making Carton Box |
---|---|---|---|
Box Forming: | Both Sides Fold | Weight: | 1200kg |
Driven Type: | Electric , Pneumatic | Voltage: | 380v/50hz 220v/60hz |
Glue Type: | Cold Glue | Packaging Material: | Plasstic, Metal, Wood |
Certification: | CE ISO9001 | Warranty: | One Year |
Highlight: | 220v corrugated box folder gluer,automatic small corrugated box folder gluer,220v carton folder gluer machine |

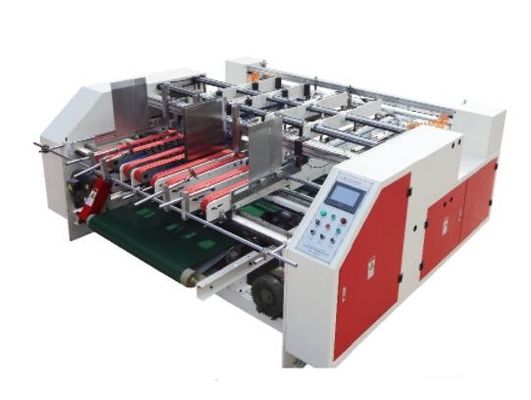

Small Lock Bottom Box Carton Automatic Folder Gluer Machin
automatic hook bottom box machine is a heavy type, motor uses dual frequency control, stable power saving; The operation adopts double face tooth adjustment, simple and convenient; The paper uses a plurality of belts to cooperate with suction to ensure continuous and accurate feeding of paper; Unique three - plate Safe Harbour, to make paper more accurate; Provide the left and right sides of the paste barrel and three spray guns. Products adapted to various changes; Using photoelectric counter, quantitative counting, equipped with automatic kicking device ( optional automatic SPRAY device ); The conveying pressure table uses special materials to ensure the product is perfect; On the basis of the basic configuration of the machine, there are targeted increase of accessories, more able to adapt to the types of special changes. This machine is mainly suitable for small packaging, such as cosmetics, medicine, wine box and other paper jam packaging, corrugated packaging. Debugging is simple and easy to operate.
Technical parameter:
Valid paper: card paper (200-500g) E, F flute corrugated paper board
Feeding methods: automatic and continuously
Speed: MAX 200 m/ min
Width: 100-1250 mm
Glue: solute type
Motor: 13.2KW
Size(L×W×H): 12×1.6×1.7m
