Product Details:
Place of Origin: HEBEI ,CHINA
Brand Name: Hh
Certification: CE
Model Number: 1400*2600mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: plastic
Delivery Time: 15-30 days
Payment Terms: T/T

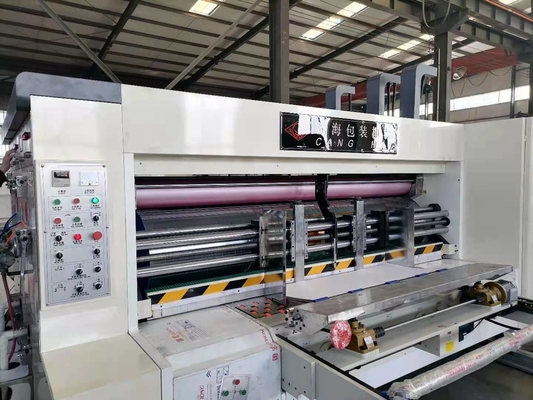

Flexo Printer Slot Die Cut Corrugated Carton Box Machine 200pcs/Min

Description
Condition: New Speed: 100/150/200pcs/min
Color: Client Request Product Name: Flexo Printer Slot Die Cut Corrugated Carton Box Machine
Function: Printer Corrugatd Cardboard Make The Carton Box Usage: Making Carton
Certification: CE ISO9001 Driven Type: Electric , Pneumatic
Voltage: 380v/50hz 220v/60hz Type: Flexo Printer Slotter Die Cutter Machine
After-sales Service Provided: Online Support, Video Technical Support, Overseas Service Center Available, N Warranty: One Year
Application: Machinery & Hardware, Food, Medical, Beverage, Commodity Core Components: Anilox Roller
High Light:

2600mm corrugated carton box machine

,

200pcs/min corrugated carton box machine

,

pneumatic driven corrugated box maker

Flexo Printer Slot Die Cut Corrugated Carton Box Machine

This machine adopts vacuum adsorption help carrying paper ,PLC touch screen control system.Man-machine conversation,The main machine with frequency conversion motor.360 phase adjustment controlled by microcomputer,The speed of glue rolls automatically giving.At the same time,it set up the computer program and glue case reparied equipment,feed accruracy less than 0.5mm,it has many good characteristics such as slicing high precision,high speed,operating easy and so on.



1.Computerized control,automatic adjustment.

2.Precise planet-geared phase adjustment device.

3.Anvil roll can be motorized adjust in circumferential & traversal;direction to prolong its usage life.

4.Quick change over rubber anvil,good wear-ability.

5.Speed difference compensation system make line speed be synchronization,it can ensure die-cutting precise.

6.Through repair anvil roll by special device,anvil roll can be product cost down.

Specification
Main technical parameter
name Unit ZYKM-1630 type
Max paper coverage area mm 1660*3200mm
Skip feed paper size mm 2000*3200mm
Effective printing area mm 1600*3000
Min feeding size mm 400*750mm
Printing cardboard thickness mm 7.2
Machinable cardboard thickness layers 3,5
Max speed Pieces/min 140
Economy speed Pieces/min 100~120
Topping precision (four color) mm ±0.5
Slotting precision mm ±1.5
Cutting precision mm ±1.5
Frequency conversion power of main motor kw 7.518.5
Shape size(length*width*high) mm 5000mm*3500mm*2500mm



Paper feeding unit

  • Lead edge feeder system, inverter adjust air volume, feeding in precision and steady.
  • Double feeding roller model, quick replacement mechanism for the first feeding rubber roller, with spring adjustment function, it can prevent distortion and to ensure accurate feeding of cardboard.
  • Brushes and suction device remove dust from board surface.
  • Touch screen displays production speed and quantity.
  • Adjust the feed interval by manual.

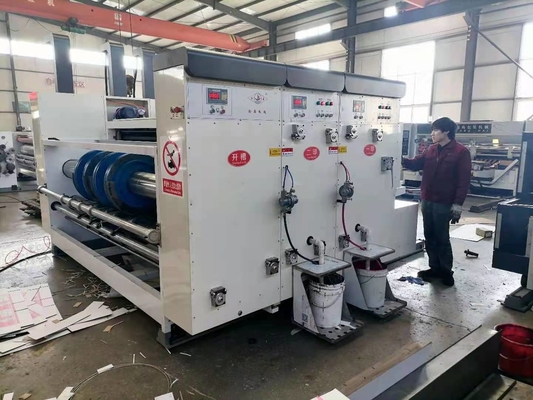

Canghai Chain feeding corrugated paperboard/cardboard carton box printing slotting machine















Die cutting unit





  • Die cut unit roller adopt high quality steel, plated with rigid chrome. high precision dynamic and static balance increase running stable.
  • Mould roller and rubber roller can auto separate by cylinder eccentric device when the machine don’t die cut, this can lighten machine load and increase rubber roller and die knife life.
  • Matching with feeding system, it with auto up and down device, the rubber roller will down when feeding paper. The rubber roller will up when stop feeding paper. To make sure every paper die cut correctly.
  • The mechanical transmission rubber roller move 58mm in left and right side. It also with wear and tear regular could increase the life of rubber roller.
  • Die cut phase adopt PLC touch screen, 360 degree adjust electric number.
  • Machine with rubber amend device, the rubber roller can be used after many times amend.
  • Free die mould slotting unit, no need to make the die mould when making normal box, saving cost and improved efficiency. (optional )

Canghai Chain feeding corrugated paperboard/cardboard carton box printing slotting machine



Canghai Chain feeding corrugated paperboard/cardboard carton box printing slotting machine
