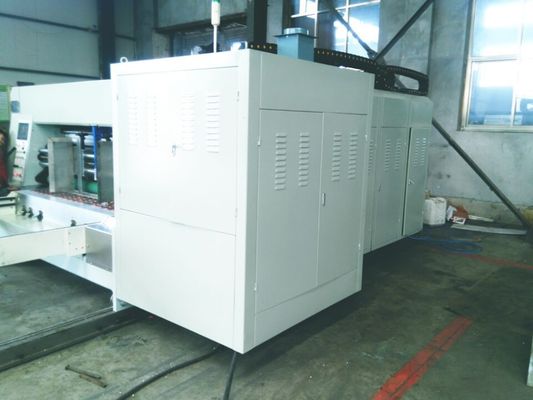

CE Computerised Corrugated Carton Machine Fully Printer Rotary Slot Die Cut

I'm Online Chat Now

CE Computerised Corrugated Carton Machine Fully Printer Rotary Slot Die Cut

CE Computerised Corrugated Carton Machine Fully Printer Rotary Slot Die Cut
CE Computerised Corrugated Carton Machine Fully Printer Rotary Slot Die Cut CE Computerised Corrugated Carton Machine Fully Printer Rotary Slot Die Cut CE Computerised Corrugated Carton Machine Fully Printer Rotary Slot Die Cut CE Computerised Corrugated Carton Machine Fully Printer Rotary Slot Die Cut

Large Image :  CE Computerised Corrugated Carton Machine Fully Printer Rotary Slot Die Cut

Product Details:
Place of Origin: CHINA
Brand Name: Hh
Certification: CE
Model Number: 1200*2600mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: plastic
Delivery Time: 15-30 days
Payment Terms: T/T
Supply Ability: 10 sets every month

CE Computerised Corrugated Carton Machine Fully Printer Rotary Slot Die Cut

Description
Max.speed: 200pcs/min Max.feeding Size: 1200*2600mm
Min.feeding: 320*700mm Skip .feeding Size: 1500*2600mm
Max.depth Of Slotting: 390mm Gegistration Precision: 0.4mm
Printing Plate Thickness: 6mm Condition: New
Voltage: Custom Made Warranty: One Year
Function: Making Carton Box
High Light:

ce corrugated carton machine

,

computerised corrugated carton machine

,

pneumatic driven carton box maker

Fully Printer Rotary Slot Die Cut Corrugated Carton Box Machine

Performance

1. YJ-130 type automatic carton flexo printer slotting die cutting machine is ecnomic type machine for medium-sized factories.
2. The machine adopts lead edge feeder with suction, feed board smooth and no damage , low demand for the cardboard, save workers.
3. control syste: PLC with touch screen set cylinder vertical adjusting automaticallly, memory order and change automatically, igreatly improve production effciency
4. this printing machine can combind with slotting unit or rotary die cutter, vibrator and stacker. make carton box one time.
5. Frequency drive motor, working stability, low power consumption.
6. The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal ineach unit.
7. Grinded 45# steel gear, low nosie and long use life.

Main Technology parameters:

Model YJ250-1022 YJ220-1224 YJ200-1426
Machine inside width (mm) 2400 2600 2800
Max feeding paper size(mm) 1000*2200 1200*2400 1400*2600
Max effective printing size(mm) 1000*2000 1200*2200 1400*2400
Min coverage size(mm) 400*600 400*600mm 400*600
Design speed(pcs/min) 250 220pcs/min 200
Working speed(pcs/min) 210-230 180-200pcs/min 160-180
Standard Thickness of printing plate 6mm 6mm 6mm
Printing precision ±0.5mm ±0.5mm ±0.5mm
Thickness of cardboard 1.2-9mm 1.2-9mm 1.2-9mm
Wall thickness 50mm 50mm 50mm
Main motor power About 18kw About 18kw About 18kw
