Product Details:
|
| Driven Type: | Electric , Pneumatic | Packaging Material: | Plastic, Paper |
|---|---|---|---|
| Name: | High Speed Flexo Printer Die Cut Slot Corrugated Carton Box Machine | Automatic Grade: | Automatic |
| Type: | Flexo Printer Slotter Die Cutter Machine | Condition: | New |
| Certification: | CE ISO9001 | Plate Type: | Letterpress |
| Printing Colorr: | 1-8 Color | Die Cutting Precision: | 1mm |
| Slot Precision: | 1mm | Spare Parts: | Siemens.schneider |
| Printing Type: | Flexo Water Base Ink | Feeding Way: | Lead Edge Automatic Feeding |
| High Light: | 8 color corrugated carton box machine,diecut slot corrugated carton box machine,pneumatic driven corrugated box packing machine |
||

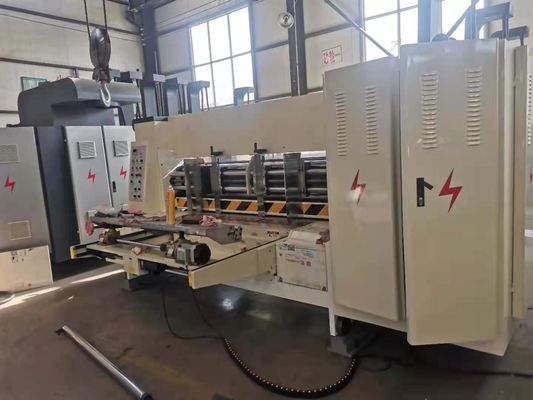

High Speed Flexo Printer Die Cut Slot Corrugated Carton Box Machine
Function of feeding department:
1adopt sun feeder,wind absorbing auxiliary paperboard feeding,can make the cardboard feed adoringly.The volume of the wind can be adjusted accord the camber of the paperboard.
Start protecting device of the main motor,when the machine platform not been locked,the main motor can not running.
2 Continuous and skip cardboard feeding,counting device is install.
3Double rubber roller for feeding ,the rubber roller have slot for prevent the overlarge pressure.
4 The feeding roller is rubber with cylinder cushioning device,precise feeding,with not detector the hardness of the cardboard when the feeding space is small.
5 The side baffles adopt electrical control with date display.(here can add automatic pneumatic aligning device),the back baffle box adopt electric adjustment ,the front baffles space is synchronous manual adjustment.
6 Brush dust-removal equipment with dust-absorption blower,can adjust the wind volume accord the cardboard size.
7 Each unit is electric moving left and right with warning bell,make sure the operator safe.
8 Electronic counter be sure for setup the production quantity ,when complete the production quantity ,automatic warning.(if chose the touch screen control,the touch screen will display the production quantity)
Technical parameters:
| Parameter | Unit | Model | ||||
| 950 1800 |
950 2000 |
950 2200 |
4212 2200 |
4212 2400 |
||
| Max. machinery speed | pcs/min | 200 | 200 | 200 | 180 | 180 |
| Economic printing speed | pcs/min | 160 | 160 | 160 | 150 | 150 |
| Max. size of paperboard | mm | 950×2000 | 950×2200 | 950×2400 | 1300×2400 | 1300×2600 |
| Min. size of paperboard | mm | 260×500 | 260×500 | 260×500 | 350×800 | 350×800 |
| Min. space of slotting (Obverse knife) |
mm | 140×140×140×140 | 150×150×150×150 | |||
| Min. space of slotting (Reverse knife) |
mm | 260×60×260×60 | 280×60×280×60 | |||
| Max. depth of slot | mm | 240 | 240 | 240 | 300 | 300 |
| Skip feed size | mm | 1200×2000 | 1200×2200 | 1200×2400 | 1500×2400 | 1500×2600 |
| Max. printing area | mm2 | 950×1800 | 950×2000 | 950×2200 | 1300×2200 | 1300×2400 |
| Thickness of standard printing plate |
mm | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
Haohan Packaging Machinery Co.,Ltd is a academician of Chinese Packaging Technic Association.Our company specializes in discovery, development and production of paper board production line, automatic flexo ink printing slotting die cutting machine, automatic flexo ink printing slotting machine, automatic flexo ink printing die cutting machine, semi-auto flexo ink printing slotting machine, semi-auto water ink printing die cutting machine ,slicing cardboard and pressing line machine, rotary die cutting machine, slotting machine, carton stapler,,binding machine, case gluing machine, impressing machine and other relevant packaging machinery.
Many years before, our company considers “Quality is first, Honesty is root” as our principal, to meet customers’ demand is our target. We can supply from machine design to after-sale all service with high quality and professional technique.
We would like to cooperate with friend from every countries sincerely, and we will work hard to create the future of package together
