1600mm Single Face Corrugated Carton Box Machine A Flute

I'm Online Chat Now

1600mm Single Face Corrugated Carton Box Machine A Flute

1600mm Single Face Corrugated Carton Box Machine A Flute
1600mm Single Face Corrugated Carton Box Machine A Flute
1600mm Single Face Corrugated Carton Box Machine A Flute 1600mm Single Face Corrugated Carton Box Machine A Flute 1600mm Single Face Corrugated Carton Box Machine A Flute 1600mm Single Face Corrugated Carton Box Machine A Flute 1600mm Single Face Corrugated Carton Box Machine A Flute 1600mm Single Face Corrugated Carton Box Machine A Flute

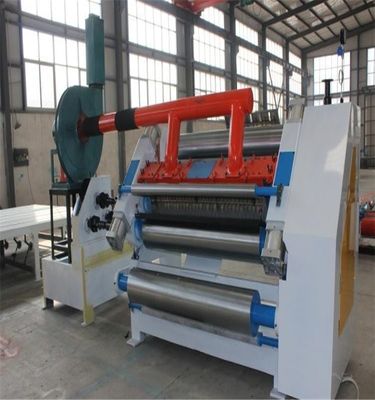

Large Image :  1600mm Single Face Corrugated Carton Box Machine A Flute

Product Details:
Place of Origin: CHINA
Brand Name: Hh
Certification: CE
Model Number: 1600mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: plastic
Delivery Time: 15-30 days
Payment Terms: T/T, L/C
Supply Ability: 30 sets every month

1600mm Single Face Corrugated Carton Box Machine A Flute

Description
Machine Name: Single Face Corrugating Corrugated Carton Box Machine Flute Type: A B C D E
Speed: 100/150/200 Pcs/min Machine Size: 1600mm
Weight: 6000kg After-sales Service Provided: Online Support, Video Technical Support, Overseas Service Center Available, N
Condition: New Application: Machinery & Hardware, Food, Medical, Beverage, Commodity
High Light:

single face corrugated carton box machine

,

a flute corrugated carton box machine

,

1600mm corrugated box making machine

Single Face Corrugating Corrugated Carton Box Machine



Structural feature

★adopt suction hood structure,matched high pressure powerful fan. Suction with silence, gas supply and electrical control cabinet to focus on the same operation,away from the host is not less than 1.5m.Operating side closed full cover.

★the base and wallboard cast iron structure, the thickness of wallboard is 200mm.Independent gear box, universal joint transmission structure.

★corrugated roller material adopt 48CrMo alloy steel,diameter of corrugated roller main roller ¢ 280mm,Quenched, CNC grinder grinding, IF quenching, surface finish,surface tungsten carbide dealing, surface hardness above HV1200 degree.Bearing of corrugated roller and pressure roller key parts adopt Timken bearings produce heat.



technical parameters

  1. effective width:1600mm
  2. 2,operate direction:left or right(Determined in accordance with the customer's facility)

3,design speed:100m/min 4,range of temperature:160—180℃

5,air source:0.4—0.9Mpa 6,steam pressure:0.8—1.3Mpa

7.equipment:Lmx3.5*Wmx1.7*Hmx2.2 8,single weight:MAX 4500Kg

9.Flute type :according to customer request

※Roller diameter parameters:

1,corrugated roller:up¢280mm d





   Haohan packaging machinery factory is in north China earlier packaging machinery manufacturers, strong technical force. our plant products are novel, variety complete, stable quality, reasonable price, timely delivery.good service well received by users.In recent years, our factory take the market as the guide, relying on science and technology development.New import of modern enterprise operation mechanism, make the enterprise gradually developed into a set baoz machinery and equipment research, production, sales and service in one of professional manufacturers.Now we are in the part of domestic research institutes and universities to establish a long-term relations of cooperation, to develop more suitable for users of new products.In the new century, we will continue to promise "high-efficient, innovation, professionalism, integrity" spirit of enterprise, with you hand in hand, create brilliance.
