Corrugated Carton Box 4 Ply Automatic Flute Laminator Machine Servo Motor

I'm Online Chat Now

Corrugated Carton Box 4 Ply Automatic Flute Laminator Machine Servo Motor

Corrugated Carton Box 4 Ply Automatic Flute Laminator Machine Servo Motor
Corrugated Carton Box 4 Ply Automatic Flute Laminator Machine Servo Motor Corrugated Carton Box 4 Ply Automatic Flute Laminator Machine Servo Motor Corrugated Carton Box 4 Ply Automatic Flute Laminator Machine Servo Motor

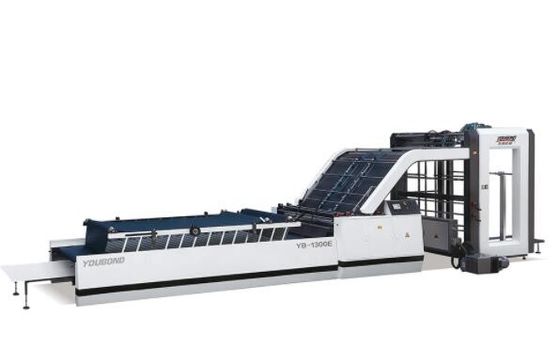

Large Image :  Corrugated Carton Box 4 Ply Automatic Flute Laminator Machine Servo Motor

Product Details:
Place of Origin: CHINA
Brand Name: Hh
Certification: CE EAC
Model Number: 1300mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: plastic
Delivery Time: 15-30 days
Payment Terms: T/T
Supply Ability: 30 sets every month

Corrugated Carton Box 4 Ply Automatic Flute Laminator Machine Servo Motor

Description
Type: Laminating Machine, Automatic Flute Laminating Machine Machinery Test Report: Provided
Core Components: PLC, Gearbox, Gear Max Sheet: 1300*1250/1450*1250/1650*1450mm
Top Paper Thickness: 150-600g Warranty Of Core Components: One Year
After-sales Service Provided: Free Spare Parts, Field Maintenance And Repair Service Speed: 6000pcs/hour
Min Sheet: 400*400mm
High Light:

4 ply automatic flute laminator

,

servo motor automatic flute laminator

,

4 ply flute lamination pasting machine

Automatic Box Paste Flute Laminator Corrugated Carton Box Machine



Features:

1,Servo motor controls bottom sheet

2,Front gauge and side lay for sheet alignment

3,Imported electrical component for stable running





Specification of the 1300-1450-1650E flute laminating machine

MODEL YB-1300E YB-1450E YB-1650E
Max Sheet 1300×1250mm 1450×1250mm 1650×1450mm
Min Sheet 400×400mm 400×400mm 400*400mm
Top Paper Thickness 150-500g 150-500g 150-500g
Botton Sheet Thickness A,B,C,E,F flute,4 ply corrugated paper(AA,AB,BB),Gray board
Max Speed 7000sheets/hour 7000sheets/hour 7000sheets/hour
Fitting Precision ±1mm ±1mm ±1mm
Machine Weight 5000kg 5500kg 6000kg
Measurement 11.5×2×2.4M 11.5×2.2×2.4M 11.5×2.4×2.4M
Machine Power 10KW/380V 11KW/380V 12KW/380V



Production Precess:

F flute corrugation paper making machine
