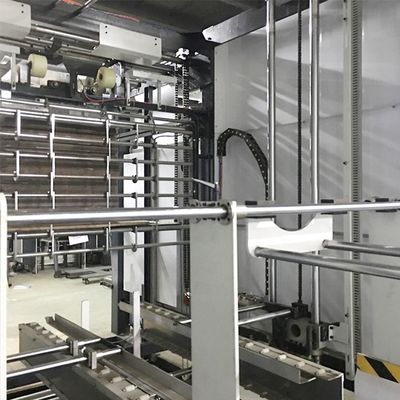

Automatic Electric Driven Carton Box Pasting Machine Corrugated Sheet Paper Board Card

Automatic Electric Driven Carton Box Pasting Machine Corrugated Sheet Paper Board Card
Automatic Electric Driven Carton Box Pasting Machine Corrugated Sheet Paper Board Card Automatic Electric Driven Carton Box Pasting Machine Corrugated Sheet Paper Board Card Automatic Electric Driven Carton Box Pasting Machine Corrugated Sheet Paper Board Card Automatic Electric Driven Carton Box Pasting Machine Corrugated Sheet Paper Board Card

Large Image :  Automatic Electric Driven Carton Box Pasting Machine Corrugated Sheet Paper Board Card

Product Details:
Place of Origin: CHINA
Brand Name: Hh
Certification: CE EAC
Model Number: 1300mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: plastic
Delivery Time: 15-30 days
Payment Terms: T/T
Supply Ability: 10 sets every month

Automatic Electric Driven Carton Box Pasting Machine Corrugated Sheet Paper Board Card

Description
Machinery Test Report: Provided Core Components: PLC, Pressure Vessel
Driven Type: Electric Dimension(L*W*H): 12700*2000*2300mm
Speed: 8000pcs/hour Min Sheet: 400*380mm
Warranty Of Core Components: One Year Automatic Grade: Automatic
Max Sheet: 1300*1300mm Top Paper Thickness: 150-500g
High Light:

electric driven carton box pasting machine

,

1300mm carton box pasting machine

Automatic Corrugated Sheet Paper Board Card Carton Box Pasting Machine



1.Machine Description:

*Suction floating feeding paper, accurate running balance. Photoelectric control to avoid single - sheet walking. The machine adopts the prepush position : the paper and corrugated fit error range is + / - 1.5mm

* synchronous belt drive: imported synchronous belt, maintenance-free, accurate, stable and noiseless.

2.Machine Function:

*The machine adopts unique pressure spring front gauge design, which effectively reduces mechanical failure rate and ensures accurate positioning with intelligent control.

*The machine adopts frequency conversion to regulate speed. PLC centralized control, module conversion, operation control standard

*Double servo control is adopted to realize the timeliness and accuracy of the base paper to the front gauge, so as to ensure the accuracy of the machine under the operating condition

*After balancing treatment and testing, the steel roller, coupled with the tightening assembly process, effectively improves the mechanical stability. In addition, when the main transmission is driven by the timing belt, the bottom paper part directly absorbs the air and delivers the paper, effectively improving the operating accuracy and speed of the machine

* Adopt the page control system to automatically recycle the glue, which greatly reduces the labor intensity.

*The machine adopts all ISO9001 standard inspection of materials, with high quality and solid durability. Key parts such as bearings are imported

*Independently develop a powerful FEIDA paper with precoded paper device to reduce downtime and improve work efficiency

*The machine is suitable for 150-450gsm paper, A B C D E F wave and three and five layers cardboard (the maximum thickness is less than 10mm)



Product Name Automatic laminate Machine
Specifications 1300mm 1600mm
Maximum Cladding Size 1300*1300mm 1600*1400
Minimum Cladding Size 400mm*380mm 400mm*380mm
Mechanical Speed 0-140/min(400mm-800mm/8000pics,900mm以上/5000pics)
Power 15kw 15KW
Dimensions :(Length * Width *Height) 12700mm*2300mm*2655mm 12700*2600*2665MM
The Total Weight 5T 5.5T
The Paper Requirements Base paper: minimum basis weight of 300 g / ㎡, the largest base of 800 g / ㎡, the biggest thickness: 10 mm
Tissue: minimum basis weight of 150 g / ㎡, the largest base of 800 g / ㎡
