Product Details:
|
| Warranty Of Core Components: | One Year | Condition: | New |
|---|---|---|---|
| Machine Color: | Yello, Blue, White Or Customized | Motor Power: | 5.5kw |
| Min Slot Distance: | 190*50*190*50mm | Cardboard Thickness: | 3 5 7 Layer |
| Feeding Type: | Lead Edge Feeder | Design Speed: | 100/150/200 Pcs/min |
| High Light: | automatic slotting corrugated box making machine,3 layer corrugated box making machine |
||

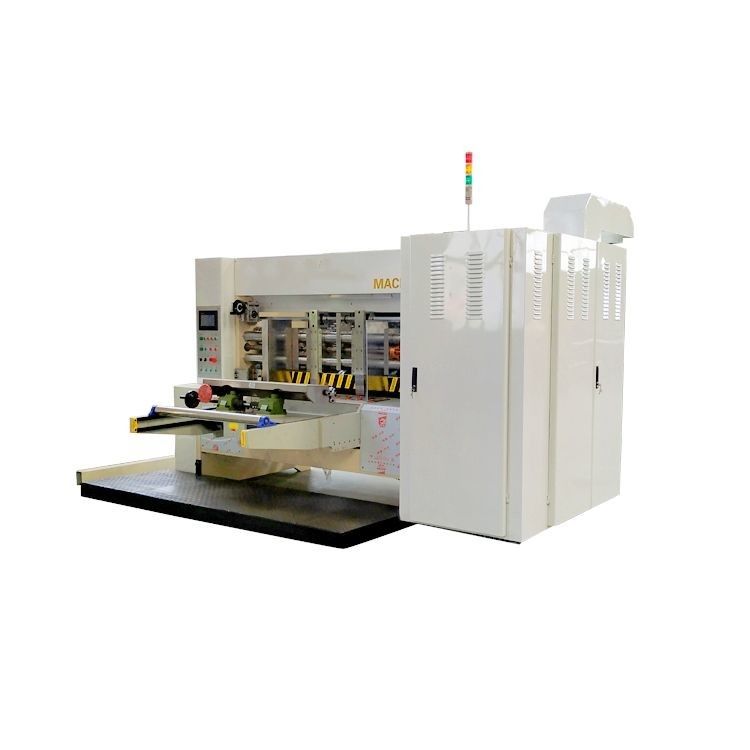

Automatic Box Making Slotting Corrugated Carton Box Machine
1. This machine adopts lead edge feeder with suction vacuum design, it can do slotting, corner cutting, slitting, creasing one time
2. Main drive motor is variable frequency motor, running smoothly and saving energy.
3. Left-right baffle adjusted by electric, front baffle adjusted by hand synchronously.
4. Slotting unit is planetary gear structure, phase adjusted by electric in 360 degree(both in running and stop)Spray lubrication, longer service life of gear transmission.
5. The gear transmission adopts no clearance adjustment design to improve the paper feeding accuracy.
6. Photoelectric counter.
7. option
8. according to the requirements, you can choose the holding hole punching unit
9. carton air hole, carton handling hole
| Model | RS4-1224A | RS4-1426A |
| Cutter die diameter | Φ405mm | Φ480mm |
| Max sheet size(mm) | 1200*2400 | 1400*2600 |
| Min sheet size(mm) | 350*500 |
400*500
|
| Min slot distance(mm) | 190*50*190*50 | 190*50*190*50 |
| Slot width(mm) | 7mm | 7mm |
| Sheet thickness(mm) | 3-10mm | 3-10mm |
| Work speed (pcs/min) | 0-140 | 0-140 |
| Power (kw) | 5.5 | 5.5 |
