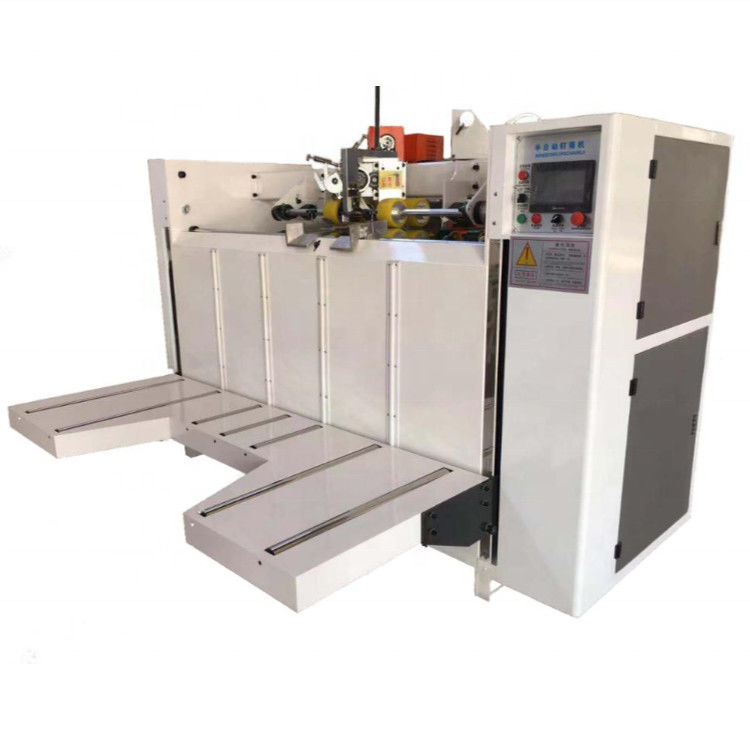

PLC Carton 7 Ply Corrugated Box Stitching Machine Semi Auto

PLC Carton 7 Ply Corrugated Box Stitching Machine Semi Auto
PLC Carton 7 Ply Corrugated Box Stitching Machine Semi Auto PLC Carton 7 Ply Corrugated Box Stitching Machine Semi Auto PLC Carton 7 Ply Corrugated Box Stitching Machine Semi Auto PLC Carton 7 Ply Corrugated Box Stitching Machine Semi Auto PLC Carton 7 Ply Corrugated Box Stitching Machine Semi Auto PLC Carton 7 Ply Corrugated Box Stitching Machine Semi Auto

Large Image :  PLC Carton 7 Ply Corrugated Box Stitching Machine Semi Auto

Product Details:
Place of Origin: CHINA
Brand Name: Hh
Certification: CE EAC
Model Number: 2000mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: plastic
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 30 sets every month

PLC Carton 7 Ply Corrugated Box Stitching Machine Semi Auto

Description
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Application: Corrugated Cardboard, Corrugated Box
Packaging Material: 3-7 Ply Corrugated Board After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Stitching Box Automatic Grade: Semi Auto
Product Name: Staples Packing Machine SPEED: 500 Nails / Min
High Light:

7 ply corrugated box stitching machine

,

plc corrugated box stitching machine

,

7ply carton box stitching machine

Semi - auto Carton Box Stitching Machine

Function

1.Japan Mitsubishi imported four servo drive, accurate accuracy, mechanical transmission part reduction, can effectively reduce the mechanical failure rate.

2.The entire control system adopts the Japanese Mitsubishi PLC control system

3.contactors in the control box are all German Siemens brand.

4.The whole group of nail head is all made of special steel, computer CNC precision machining.

5.Naacked with cover & uncovered carton (when when without case to nail).

6.The rear section has automatic counting function. The finished sheets can be stacked to the end of the conveying machine according to the set number (1-99) to facilitate packing and binding.

Type and parameter SDJ-4000B
max paper(A+B)*2 (mm) 8000
min paper(A+B)*2 (mm) 1220
 A mm Max carton length 3820
A mm Mix carton lengt 430
 mm Max width 2000
B mm Min width 180
(C+D+C) (mm) Max paper height 3200
(C+D+C) (mm)Min paper height 400
Max.C(mm) 600
Min.C(mm)

80(标配)

20(选配)

D(mm) Max height 2000
D(mm) Min height 200
(mm) Max tongue width 40
 mm stitch distance 30-120
stitch No 2-99
(次/mim) 600
(T)weight 4.5
