High Speed Touchscreen Corrugated Carton Box Machine Thin Blade Slitter Scorer

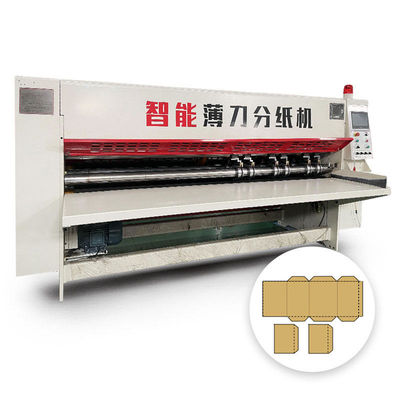

Large Image : High Speed Touchscreen Corrugated Carton Box Machine Thin Blade Slitter Scorer

Product Details:

Place of Origin:	CHINA
Brand Name:	Hh
Certification:	CE
Model Number:	2500mm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiated
Packaging Details:	plastic
Delivery Time:	15-30 days
Payment Terms:	T/T
Supply Ability:	30 sets every month

Contact Now

High Speed Touchscreen Corrugated Carton Box Machine Thin Blade Slitter Scorer

Description

Applicable Industries:	Corrugated Cardboard Industry	Video Outgoing-inspection:	Provided
Driven Type:	Electric	Maximum Paper Feeding Width:	2500mm
Minimum Distance Between Crimping Lines:	40-140mm	Blades & Scorer:	Servo Motor 4b & 6s
Minimum Feeding Length:	450mm	Slitting And Crimping Accuracy:	±0.5mm
Adjust Knife:	By Computer
High Light:	touchscreen corrugated carton box machine , 2.5m corrugated carton box machine , electric driven slitter scorer machine

High Speed Thin Blade Slitter Scorer Corrugated Carton Box Machine

1. In the production process of corrugated boxes, this machine is a carton mechanical equipment that completes the pre-pressing,conveying, paper-separating and line-pressing processes at one time.
2. The equipment adopts servo motor and PLC touch screen control, which can complete cutting and crimping at one time.
3. Simple operation, portable setting, servo motor can quickly change orders within 5 seconds, which greatly improves work efficiency.
4. Combination of knife adjustment and line-pressing servo motors and slide rails, helical gear transmission, more precise adjustment and smoother walking.

5. The main transmission adopts spline transmission, which has uniform force and is not easy to wear.

PLC Control

⭐Simple operation: select the carton type, enter the carton size information, and press a key to complete the knife adjustment.

⭐Production efficiency: Quickly produce small orders, save time for tool adjustment, and improve work efficiency.

Easy to Operate

⭐Fast order change: Only 1-5 seconds to change order, and the processing efficiency of scattered orders is very high

⭐Only need to scan the QR code to export the order information

⭐Order storage: The system can store1,000 orders

Model	HT-DF-25A	HT-25A
Blades & scorer	Servo Motor 4b & 6s	Servo Motor 5b & 8s
Pressure adjustment	Auto
Speed	200nm/min
Max. feeding width	2500mm
Max. slitting width	2500mm	2500mm
Min. slitting width	140mm	140mm
Min. scoring width	40×140mm	40×140mm
Slitter Accuracy	±0.5mm
Main motor power	4KW
Dimension (LxWxH)	3460x1500x1530mm
Overall net weight	Approx 3000kg
