Product Details:
|
| Machinery Test Report: | Provided | Core Components: | PLC, Gearbox, Gear |
|---|---|---|---|
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Food & Beverage Factory, Farms, |
| Packaging Material: | 3-7ply Corrugated Board | Key Selling Points: | Easy To Operate |
| High Light: | Slotting Corrugated Carton Box Machine,Printing Corrugated Carton Box Machine,Auto Feeding Corrugated Carton Box Machine |
||

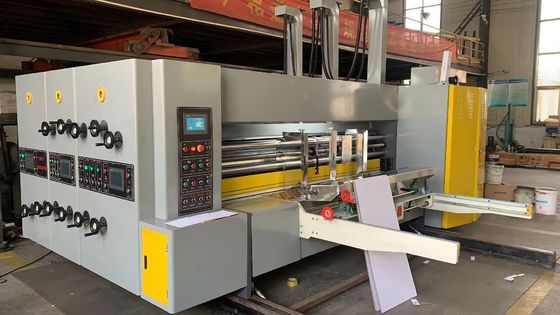

Auto Feeding Printing Slotting Corrugated Carton Box Machine
This machine adopts vacuum adsorption help carrying paper ,PLC touch screen control system.Man-machine conversation,The main machine with frequency conversion motor.360 phase adjustment controlled by microcomputer,The speed of glue rolls automatically giving.At the same time,it set up the computer program and glue case reparied equipment,feed accruracy less than 0.5mm,it has many good characteristics such as slicing high precision,high speed,operating easy and so on.
| name | Unit | ZYKM-1630 |
| Max paper coverage area | mm | 1660*3200mm |
| Skip feed paper size | mm | 2000*3200mm |
| Effective printing area | mm | 1600*3000 |
| Min feeding size | mm | 400*750mm |
| Printing cardboard thickness | mm | 7.2 |
| Machinable cardboard thickness | layers | 3,5 |
| Max speed | Pieces/min | 140 |
| Economy speed | Pieces/min | 100~120 |
| Topping precision (four color) | mm | ±0.5 |
| Slotting precision | mm | ±1.5 |
| Cutting precision | mm | ±1.5 |
| Frequency conversion power of main motor | kw | 7.5—18.5 |
| Shape size(length*width*high) | mm |
5000mm*3500mm*2500mm |
