Product Details:
|
| Warranty: | One Year | Machinery Test Report: | Provided |
|---|---|---|---|
| Core Components: | Pressure Vessel, Bearing, Motor, PLC | Key Selling Points: | Automatic, Long Service Life |
| Feeding Way: | Auto Lead Edge Feeder | Box Type It Can Make: | Rigid Box, Standard Box |
| Highlight: | Automatic Flexo Printing Slotting Machine,Pizza Box Flexo Printing Slotting Machine,PLC Flexo Printing Slotting Machine |
||
Automatic Pizza box flexo printing slotting Machine
Machine Feature
1. The total machine adapt PLC controlling print unit and slot phase adjustment, easy to operate and reliable.

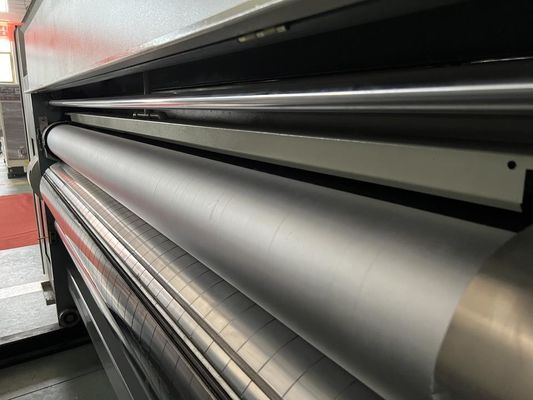

2. Whole machine frame and important part are being aging treatment, tempering eliminate the stress of metallic; all of them come from high precision processing center, CNC grinding machining process. All the rollers are high quality steel, high precision Computer dynamic balancing correction of hard chromium plating, surface grinding.
3. The transmission gear adopt 40 CrMin Ti high quality alloy steel which is grinded, and after the heat treatment ,it can up to six precision, Its surface with rockwell hardness HRC58-62, make color more accuracy.
4. Each unit of the machine with electric separation, and pneumatic locking, pneumatic total lock, to ensure the stability of the unit, and continue ring for caution when machine be separated, to ensure the safety of operating person.
5. The machine with emergency stop switch at front, middle and back section.
Main parameter
| type | unit | ZYK1838 |
| Plate roller dia | mm | ￠620 |
| Plate roller length | mm | 3800 |
| Inner width of machine | mm | 4100 |
| max speed | Ps／min | 150 |
| economic speed | Ps／min | 120 |
| effect printing size | Mm | 1800×3800 |
| Max.cardboard size | Mm | 1800×3800 |
| min feeding paper size | Mm | 500×890 |
| board thickness | Mm | 2－16mm |
| machine frame thickness | Mm | 6mm |
| topping precision | Mm | ≤±:0.55 |
| Slot precision | mm | ≤±:1.2 |
| main motor power | KW | 22 |
| Max.slot depth | mm | 580 |
| Min.slot space reverse | Mm | 310*110*310*110 |
| Min.slot space Normal | Mm | 190*190*190*190 |
| Wallboard thickness | mm | 50 |
