Corrugated Paperboard Carton Folder Gluer Machine Stitching

Corrugated Paperboard Carton Folder Gluer Machine Stitching
Corrugated Paperboard Carton Folder Gluer Machine Stitching Corrugated Paperboard Carton Folder Gluer Machine Stitching Corrugated Paperboard Carton Folder Gluer Machine Stitching Corrugated Paperboard Carton Folder Gluer Machine Stitching Corrugated Paperboard Carton Folder Gluer Machine Stitching

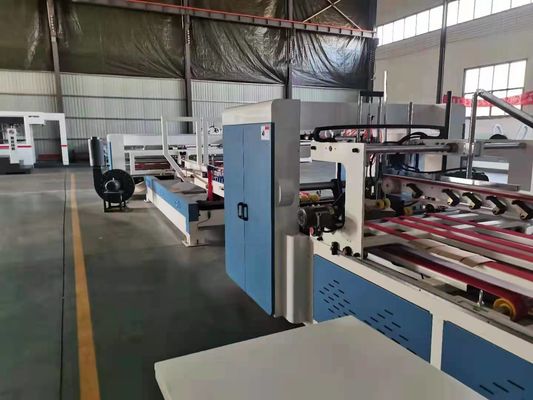

Large Image :  Corrugated Paperboard Carton Folder Gluer Machine Stitching

Product Details:
Place of Origin: CHINA
Brand Name: Hh
Certification: CE
Model Number: 1200*2400mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: plastic
Delivery Time: 15-30 days
Payment Terms: T/T
Supply Ability: 30 sets every month

Corrugated Paperboard Carton Folder Gluer Machine Stitching

Type: Carton Folder Gluer Machine Showroom Location: Viet Nam, Saudi Arabia, Indonesia, Mexico
Machinery Test Report: Provided Application: Food, Beverage, Commodity, Medical, Chemical, Machi
Automatic Grade: Automatic Air Source Standard: Pressure: 0.6--0.8Mpa (provided By Customers)
Stitching Speed: 1200/Min Nail Angle: 45°
Nail Distance Range: 30-150mm
High Light:

Carton Folder Gluer Automatic


Stitching Carton Folder Gluer Machine


Carton Folder Gluer Machine 1200/Min

Corrugated Paperboard Folding Gluing Stitching Carton Folder Gluer Machine

   Automatic Stitching Machine is mainly designed to replace the pure manual and semi-automatic box gluing and nail box machine. Solve the persistent problems of packaging companies in pasting boxes and nail box forming processes, such as a large number of people, a large area, low efficiency, and poor quality. This model has the advantages of high speed, high quality and high intelligence. Save a lot of skilled workers, save half of the glue, and achieve a double harvest of efficiency and quality. Contribute to the development of packaging enterprises.

Paper Feeding, Folding Gluing Unit :
1.The main motor adopts frequency conversion speed regulation, the system is noiseless, and the speed regulation is flexible and stable. 2.Adopting belt suction and paper feeding method, 8 wind boxes can adjust the air volume arbitrarily, so that the paper feeding is accurate and reliable. 3. Adopt high-end electromagnetic clutch brake system, so that the paper feeding part can be controlled separately, and the operation is simple and convenient. 4.The front baffle and paper feeding belt of the paper feeding section can be adjusted from left to right, and the front paper feeding section can be adjusted electrically, which is convenient and quick to meet the paper feeding requirements of cartons of various specifications. 5.The eccentric wheel adjusts the gap, which is suitable for cardboard with multiple specifications and thickness. Suitable for cardboard thickness 3-8mm. 6.Adopt the gluing method under the knurled wheel, the gluing wheel can adjust the width of the glue, the glue is uniform, there is no leakage, and the glue is saved;The gluing speed is synchronized with the host machine, which reduces the friction between the rubber wheel and the cardboard and extends the service life of the rubber wheel.
Folding Unit :
1. Linked with paper feeding department, frequency conversion speed regulation. 2. Imported high-friction belts and timing belts are used to transport the cardboard, which automatically folds, effectively avoiding the shearing phenomenon caused by the different thickness of the cardboard or the different tightness of the belts on both sides. 3. The folding part is equipped with a cardboard correction device, an indentation correction device, and a snap correction device, which can effectively compensate and correct the phenomenon that the fold line is not in place during the grooving process and avoid the occurrence of scissors. 4. Adopt the vacuum suction method to feed the paper to ensure that the cardboard is neatly fed and not skewed 5. The folding speed is 130m/min.6. The folding beam has a four-point pneumatic locking mechanism to ensure stable operation of the folding beam.
Pre-folding Unit :
Using patented technology Mitsubishi servo motor and timing belt to drive three clappers, to achieve the same paper correction device for chasing shots, minimize the damage of the cardboard, perform secondary compensation and correct the phenomenon of not in place, eliminate the scissors mouth, and make the nail box more perfect. Main motor Japan Mitsubishi servo motor. The paper conveying belt adopts the famous domestic brand belt. The servo motor drives the clapper through the timing belt to realize the alignment of the carton, making it easier to accurately control the clapper.
Stitching Unit :
1. Using synchronous belt conveyor, PLC control, touch screen adjustment, (such as: nail box page, glue box page: used for nail box, glue box exchange: stage display: nail box speed and work output can be viewed when nailing the box. ) Convenient, fast and accurate. 2.It has a flapping correction device to compensate and correct the lack of position of the box piece, effectively reducing the occurrence of scissors. 3.Adopt swing nail head to effectively improve the quality of nail box. 4.Adopt standard 17#(2.0*0.7mm) 18#(1.81*0.71mm) nail wire, size tolerance: +0.02mm, reliable quality 20kg wire reel, reduce the number of wire changes and improve production efficiency. 5.With order memory function, it can effectively reduce the time of order change adjustment and improve production efficiency. 6.Nailing speed 1200 nails/minNail angle 45 degreesNail distance range 30-120mm.
Counting&Delivery Unit :
1. After the glued carton is finished, it will be patted, counted, stacked again and sent out automatically. 2. With differential correction, the accumulation speed is 130m/min. 3. Pneumatic method is adopted for counting and pushing out, which is reliable, accurate and fast. 4. Equipped with an emergency stop switch to avoid waste of cardboard in emergency situations and for safety design.
Electric Control Unit :
1. Use touch screen to input various carton data, complete specification adjustment and order change, simple operation and reliable action. 2.It can input data without stopping the machine, automatically count and output accurately. 3.Total installed capacity: 30KW The electric control system adopts the latest PLC computer automatic control system of Japan's Mitsubishi, from gluing, folding, sorting, staple box, paper delivery, automatic detection and control, and Japan Fuji contactor. The man-machine interface display system can display various working conditions, point out where the fault occurred and propose solutions. Equipped with a variety of safety protection devices, sound and light alarms when failure occurs, and automatically shut down to ensure the safety of man and machine.
Our Service
We deeply know that, excellent and efficient after-sales service is an indispensable part for clients to achieve due benefits. To offer most favorable and satisfactory service for wide clients, we hereby solemnly promise:

♦All the equipments are offered with one year quality warranty. After the guarantee is expired, we offer long-term maintenance service and supply of parts and components at cost price.

♦The equipments will be delivered accompanied with detailed installation and operation manual and related information.
