Product Details:
|
| Type: | Flexo Printer Slotter Die Cutter Machine | Condition: | New |
|---|---|---|---|
| Color & Page: | Multicolor | Key Selling Points: | Automatic, Long Service Life |
| After-sales Service Provided: | Video Technical Support | Plate Type: | Flexo Plate |
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Print | ||
| Highlight: | flexo printer slotter die cutter machine,flexo printing slotting die cutting machine |
||

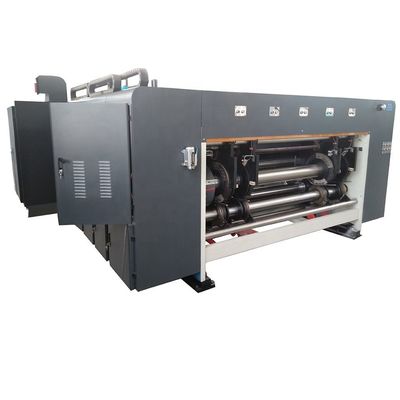

Flexo Printing Machine And Slotting Die Cutter, Printer Slotter
Use and characteristics:
1. The machine is a integrated device which can print,cut corner,slot,roll line and cut edge.
2. Adopt chain drive,manual feeding paperboard.
3. Adopt 360.degrees electric or manual adjust phase,can be adjusted both when the machine is on or off.
4. Manual adjust slotter knife,can adjust four knives synchronally,easy operation and fast adjustment.
5. When the machine is off the glue roller will rise itself,avoid damage the template.
6. The roller have automatic idling device,so that the water base ink will not dry when the machine is off.
flexo printing machine and slotting die cutter, printing machines business card, china suppliersg machine
| Model. |
YSF- D2000 |
YSF- D2200 |
YSF- D2400 |
YSF- D2600 |
YSF- D3000 |
YSF- D2600 |
YSF- D3000 |
||||||
| Roller diameter(mm) | 468 | 468 | 468 | 468 | 468 | 530 | 530 | ||||||
| Max.feeding size (mm) | 2000 | 2200 | 2400 | 2600 | 3000 | 2600 | 3000 | ||||||
| Max.printing size (mm) | 1470×1600 | 1470×1800 | 1470×2000 | 1470×2200 | 1470×2400 | 1600×2600 | 1600×2400 | ||||||
| Color accuracy (mm) | two color ±0.5 three color ±0.75 | ||||||||||||
| Slotting width* depth | 7mm*300mm | Transmission mode | Chain type | ||||||||||
| Slot Accuracy (mm) | ±1.5 | Work speed (sheets/min) | 0-60 sheets/min | ||||||||||
| Electrical power (KW) | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 5.5 | 5.5 | ||||||
1. Q: Are you a factory or trading company?
A: We are manufacturer.
2. Q: Where is your company located? How can I visit there?
A: Our company is located in Dongguang County,Cangzhou City,Hebei Province. We are near from Beijing/Tianjin city, only need 2/4 hours,We can arrange car to pick up from airport or hotel
3. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, we can arrange visiting
4. Q: How is the warranty of the machine?
A: Our machines have ONE YEAR WARRANTY. And the engineers available for overseas service.
5. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance, which will guarantee your products receiving, we also accept other safe payment way as you want.
