Fruit Pizza Box Vegetable Box Flexo Printer Slotter Die Cutter Adjustable Speed

Fruit Pizza Box Vegetable Box Flexo Printer Slotter Die Cutter Adjustable Speed
Fruit Pizza Box Vegetable Box Flexo Printer Slotter Die Cutter Adjustable Speed Fruit Pizza Box Vegetable Box Flexo Printer Slotter Die Cutter Adjustable Speed Fruit Pizza Box Vegetable Box Flexo Printer Slotter Die Cutter Adjustable Speed Fruit Pizza Box Vegetable Box Flexo Printer Slotter Die Cutter Adjustable Speed

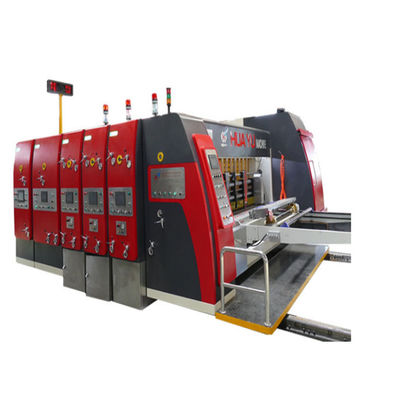

Large Image :  Fruit Pizza Box Vegetable Box Flexo Printer Slotter Die Cutter Adjustable Speed

Product Details:
Place of Origin: CHINA
Brand Name: Hh
Certification: CE
Model Number: 1400*2600mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: plastic
Delivery Time: 15-30 days
Payment Terms: T/T
Supply Ability: 30 sets every month
Contact Now

Fruit Pizza Box Vegetable Box Flexo Printer Slotter Die Cutter Adjustable Speed

Description
After Warranty Service: Video Technical Support, Spare Parts, Field Maintenance An After-sales Service Provided: Engineers Available To Service Machinery Overseas
Key Selling Points: Automatic, Long Service Life Core Components: Gearbox, Gear, Motor, Anilox Roller
Ink Type: Water Flexo Plate Type: Flexo Graphy
Highlight:

Vegetable Box Printer Slotter Die Cutter

,

Printer Slotter Die Cutter Adjustable Speed

,

Fruit Box flexo printer slotter

Fruit Pizza Box Vegetable Box Flexo Printer Slot Die Cutting Machine



Main features:
Adopting advanced vacuum absorb lead edge feeding system, with stable high speed easy operation and high accuracy. 7 inch color touch screen, pre-set 200 group orders, order inquires, zero-order input synchronous zero the automatic / manual adjustment of phase. management of the parameters, up and down the plate, auto/semi-auto inking automatic display of the production and speed, and setting of the quantities. All the drive roller adopted high quality steel materials hard chromium plating and the surface treated by lapping finish. The drive gears adopt high quality alloy steel, after heat treatment and lapping finish. Interval of all the roller is adjusted by high precise worm box With three disk handle seat, convenient and swift. Motorized electric numerical adjust the Axial and vertical movement of the knife seat and height of the carton. Speed difference compensation system is equipped with Die cutting unit Axially conjunct moving of the cam type soft roller is 40mm uniform wear and tear raise the occupation of the gum cover, save the cost. Suitable for 3/5/7 layer corrugated paperboard, as well E flute paperboard

Feeding unit:
Adopting advanced lead edge feeding system with stable high speed, easy operation and high accuracy. Left and right baffle is electrically adjusted driven by the screw Right bar have the function of pneumatic slapping. Has interval paper feeding device,(continuous or interval feeding is optional ) Convenient for large sized cardboard printing. 7 inch color touch screen, pre-set 200 group orders, order inquires, zero-order input, synchronous zero, the automatic/manual adjustment of phase, management of the parameters, up and down the plate, auto/semi-auto inking automatic display of production and speed, and setting of the quantities. Back-paper holder frame with electrically adjust which wascontrolled by the compressed air-motor, convenient and swift

Printing unit:
Zero line was equipped on surface of roller, convenient for hanging plate. Ratchet coil axis with locking up device. Plate changing easily. Foot switch control the clockwise and counter-clockwise. Fast to fixing and taking down the plate. Printing phase applies PLC and touching screen control and electric digital adjusting with 360 degree(in both running and stop statuses. Auto-zero device ensuring uniform adjusted of the machine and decrease waste by using 1 cardboard for test. Pneumatic riffled roller automatic raising/lowering device and freely rotting device. While feeding paper the riffled roller will be lowered to engage with the printing plate, and will be raised and disengaged from the printing plate so as to protect it when paper feeding stops. While it is not printing the roller will be freely rotated automatically to prevent the ink from solidifying

Slotting unit:
Motorized electric numerical adjust the Axial and vertical movement of the knife seat and height of the carton. Interval of the slotter is adjusted by high precise worm box with a range of0-1imm spanner adjustment, dial scale. Designed with planetary gearing structure, increase the life of the gear. Slotting phase applies PLC and touching screen control and electric digital adjusting with 360 degree in both running and stop statuses) phase-zero device is adopted. Single axle and double knife slotted, height adjusting applies electrical adjusted by inner gear structure so that lubricating oil is not easy to pollution carton. anti-collision protection to adjust the height of the carton which can protect the machine. Unique chip-type cleaner device for paper scraps, convenient operation

Die-cutting unit:
Speed difference of setting device is adopted that can automatically adjust the rotation speed of the rubber roller so that the die-cutting carton has exactly the same shapes as the die shape. Axially conjunct moving of the cam type soft roller is 40mm, uniform wear and tear, raise the occupation of the gum cover, save the cost. The adjust of pressure is adjusted by high precise worm box, with 3 disk handle seat. convenient and swift. Die cutting phase applies PLC and touching screen control and electric digital adjustment with 360 degree (both running and stop). The upper roller, seamless steel pipe with 4 feeding rings. dynamic balancing adjusted with stable operation. The surface is ground and electroplated with hard chrome. The lower roller utilizing precision machined high quality seamless steel pipe, dynamic
balancing adjusted with stable operation. The surface is ground and electro-plated with hard chrome.



Tag:

Flexo Printer Slotter Die Cutter,

Slotter Die Cutter Machine,

Automatic Flexo Printer Slotter Die Cutter
