Product Details:
|
| Type: | Gluing Machine | Machinery Test Report: | Provided |
|---|---|---|---|
| Core Components: | Motor | Dimension(L*W*H): | 8500*900*1300mm |
| Warranty: | One Year | Speed: | 0~220m/min Adjustable |
| Weight: | 1650 KG | Voltage: | 3P 380V 60HZ |
| Highlight: | CE Automatic Folder Gluer Machine,Multi Lock Bottom Folder Gluer Machine,220m/min Automatic Folder Gluer Machine |
||

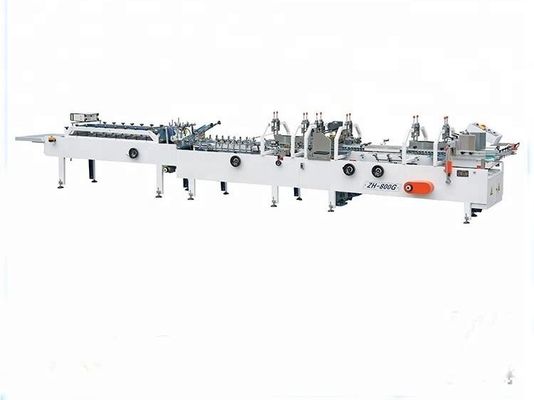

Paper Board Carton Box Automatic Multi Functional Lock Bottom Folder Gluer Machine
|
the most competitive multi-functional folder gluer machine designed by our company independently.It can fold and glue many simple and complicated carton boxes. Its ease of use, attractive pricingand broad scope of the application of the folder gluer make a new leap in folder gluer machine field.
It made indelible contributions to the field. It combines a variety of folder gluer characteristics. It changes many disadvantages of crash lock bottom folder gluer machines, such as complicated structure, difficult operating and high cost. It is convenient for the current packaging and printing industry-competitive
business variety, the less, the delivery of the tight schedule. it's ideal packaging printing industry equipment.
|
|
| Function | Single side gluing +double sides gluing +pre-folding +lock bottom |
| Paper board | 210-700 g/m², N/E/F corrugated box |
| Speed | 0-220 m/min |
| Power | 3.7KW 220V |
| Weight | 1650KG |
| Package | 3 packages with wooden cases |
| Delivery Time | 7-21 days |
| MOQ | 1 set |
| Loading port | TIANJIN PORT, CHINA |
| Payment | TT/Western Union |
| Shipping way | By sea/ truck/ train/ courier |
| Box Type | Straight Line Box | Pre-folding Box | Lock Bottom Box | ||
 |
A Max | (mm) | 600 | 600 | 600 |
| A Min | (mm) | 110 | 160 | 160 | |
| B Max | (mm) | 500 | 500 | 500 | |
| B Min | (mm) | 65 | 65 | 65 | |
| C Max | (mm) | 270 | 270 | 270 | |
| C Min | (mm) | 50 | 75 | 80 | |
| D Min | (mm) | 7 | 10 | 40 | |
| E Min | (mm) | 6 | 6 | 6 | |
