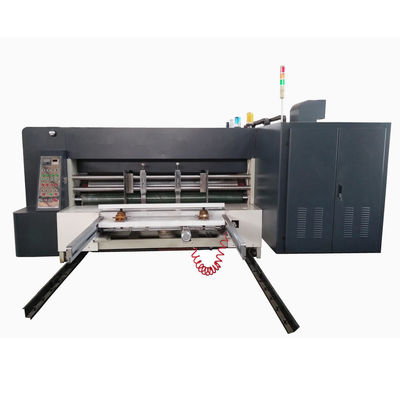

Large Image :  Flexo Printer Slotter Rotary Die Cutter Stacker Machine High Speed

Product Details:
Place of Origin: CHINA
Brand Name: Hh
Certification: CE EAC
Model Number: 1400*2600mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: plastic
Delivery Time: 15-30 days
Payment Terms: T/T
Supply Ability: 30 sets every month

Flexo Printer Slotter Rotary Die Cutter Stacker Machine High Speed

Description
Type: High Speed Flexo Printer Slotter Rotary Die Cutter Stacker Machine Colo: As Client's Request
Function: Flexo Printer Slotter Die Cutter Core Components: Gearbox, Gear, Motor, Anilox Roller
Automatic Grade: Automatic Applicable Industries: Manufacturing Plant
Driven Type: Electric
High Light:

High Speed flexo rotary die cutter

,

Rotary Die Cutter Stacker Machine

,

Automatic flexo rotary die cutter

High Speed Flexo Printer Slotter Rotary Die Cutter Stacker Machine

1) The control panel is equipped with a man-machine interface PLC touch screen, which can control the paperboard feeding unit,
printing unit, slotting unit, and die cutting unit,matched with auto stacker unit to collect carton sheet. It is easy to operate,
fast, and high precision.
2) Each unit has PLC touch screen is assembled for easier operation and adjustment. Computer control can be Store 999 commonly
used orders, change orders faster and more convenient to operate (operated by independent computer station).
3) All drive rollers are made of high-quality steel, hard chrome plated, and the surface is ground.
4) The transmission gear 50mm thick is made of high-quality steel grinding teeth.
5) The units of the whole machine are separated as a whole or individually; the bell continuously warns when walking to ensure the
safety of the operator.
6) Automatic oil balancing device to keep the oil of each unit at the same level.
7) The wallboard thickness of the main frame is made of HT250 castings, with thickness of 50mm, and processed by a large-scale CNC
Machining Center to ensure high strength and high precision.

Equipment composition:

1. Automatic feeding unit
2. Printing unit
3. Slotting unit
4. Auto stacker unit
Model
Unit
2000
2200
2400
2400
2600
Design speed
pcs/min
100/ 150/ 200
Economic speed
pcs/min
70-80/ 100-130/ 150-160
Max.feeding size
mm
950×2000
950×2200
950×2400
1300×2400
1300×2600
Min.size of paperboard
mm
260×500
260×500
260×500
260×500
260×500
Min. space of slotting
Obverse knife
mm
160×160×160×160
160×160×160×160
Reverse knife
mm
280×80×280×80
280×80×280×80
Max.depth of slot
mm
240
240
240
300
300
Skip feeding size
mm
1100×2000
1100×2200
1100×2400
1500×2400
1500×2600
Max.printing area
mm²
950×1800
950×2000
950×2200
1250×2200
1250×2400
Plate Thickness
mm
7.2
7.2
7.2
7.2
7.2
