Single Face Paperboard Corrugated Carton Box Machine Steam Driven

I'm Online Chat Now

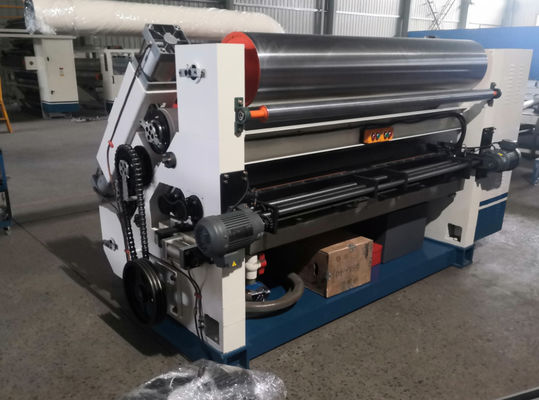

Single Face Paperboard Corrugated Carton Box Machine Steam Driven

Single Face Paperboard Corrugated Carton Box Machine Steam Driven
Single Face Paperboard Corrugated Carton Box Machine Steam Driven
Single Face Paperboard Corrugated Carton Box Machine Steam Driven Single Face Paperboard Corrugated Carton Box Machine Steam Driven Single Face Paperboard Corrugated Carton Box Machine Steam Driven Single Face Paperboard Corrugated Carton Box Machine Steam Driven Single Face Paperboard Corrugated Carton Box Machine Steam Driven

Large Image :  Single Face Paperboard Corrugated Carton Box Machine Steam Driven

Product Details:
Place of Origin: CHINA
Brand Name: Hh
Certification: CE EAC
Model Number: 1600mm1800mm 2000mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: plastic
Delivery Time: 15-30 days
Payment Terms: T/T
Supply Ability: 30 sets every month

Single Face Paperboard Corrugated Carton Box Machine Steam Driven

Description
Driven Type: Electric,steam Flute Type: A.B.C .D.E
Condition: New Key Selling Points: Corrugated Carton Box Machine
Core Components: Bearing, Motor, Pump, Gear, PLC, Function: Corrugated Carton Box Machine
Roller Diameter: 280mm/320mm/360mm
High Light:

corrugated carton box machine single facer

,

steam driven corrugated carton box machine

,

steam driven single face corrugated machine

Single Face Corrugator Corrugated Carton Box Machine

Product Description



1.What this machine used for ?



Single Facer is the main machine for producing the corrugated paperboard , make monolayer corrugated board from flat craft paper



Finished products pictures as below





2.What is the main structure for Single facer group and working principle ?



This line including paper mill roll stand and single facer machine

Step one : Make craft paper to mill roll stand

Step two :Heat the corrugated layer by heating shaft

Step three :Make the flat paperboard to corrugated board by corrugated shaft

Step Four : Gluing top wave by glue shaft and make this two pieces paper to monolayer corrugated board

Mark : below pictures for your reference , it can be made 3 layer or 5 layer by this single facer group





3.Main Characteristics for single face coorugated paper making machine





1. Cover vacuum suction.

2. Corrugating roll is made of high quality alloy steel 48CrMo, the surface is medium-frequency quenched and chrome-plated. Hardness can reach HRC55~60, which ensures good wear-resistance and long life service.

3. No gear transmission.

4. Glue roll is lifted and lowered pneumatically.

5. Independent glue clean device and electric glue-separate board to control the width of glue.

6. Manually regulate or electrically regulate the display device.

7. Lubricated by high temperature lubricate grease.

8. Surface of all dancing rolls and preheating rolls is grinded and chrome-plated.

9. Pressure roll is medium- frequency quenched and chrome-plated.

10. Width 1400mm~2000mm.

11. Preheating rolls, pressure rolls and corrugating rolls all meet the National Standard of Pressure Vessel. Working pressure is 1.1MPa.
