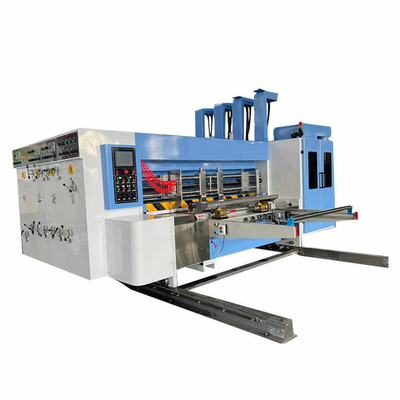

Touch Screen 3 Color Flexo Printer Slotter Die Cutter 200pcs/Min

Flexo 3 Color Printer Slotter Die Cutter Corrugated Carton Box Machine

FUNCTION OF PIRNTING UNIT

• High precision dynamic balance anilox, fine printing effect 180,200,2200 items by choose
• The print phase 360℃ adjustment, print roller can be adjusted horizontally ranging from±10mm

■The interval of transmission roller ,paper press roller ,and rubber roller and anilox roller adopt the self-lock structure.

■Brush plate reset ,and ink clean mechanism

■Print roller adopt options glue plate or handing plate ,has rapid handing plate mechanism

Options: separately position device ,ensure the print phase unchanged after separated unit

Die cut :

• Die cut unit roller adopt high quality steel ,plated with rigid chrome
• high precision dynamic balance , increase machine running stable
• mould roller and glue roller can auto separate by cylinder bias unit when the machine don`t die cut .
• auto up and down unit base feeding system , the mould roller will up when feeding paper . the mould roller will down when stop feeding paper . assure every paper die cut correctly .
• the glue roller is mechanical transmission, the roller move 40mm left and right . the glue

roller wear

• Die cut phase adopt plc touch screen ,360 degree adjust electric number machine have glue amend unit , the glue roller can use after man times amend
