Product Details:
Place of Origin: CHINA
Brand Name: Hh
Certification: CE EAC
Model Number: 1300mm 1600mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: plastic
Delivery Time: 15-30 days
Payment Terms: T/T
Supply Ability: 30 sets every month

Automatic Flute Laminating Corrugated Carton Box Machine PLC 18KW

Description
Control System: PLC Dimension: 13000 X 2000 X 2000 Mm
Material: Corrugated Cardboard Max. Sheet Size: 1600 X 1050 Mm
Max. Speed: 200 M/min Min. Sheet Size: 400 X 300 Mm
Power Supply: 380V/50Hz Product Name: Corrugated Carton Box Machine
Stacking System: Vacuum Suction Total Power: 18KW
Type: Automatic Warranty: 1 Year
High Light:

PLC Corrugated Carton Box Machine

,

18KW Corrugated Carton Box Machine

,

PLC Corrugated Box Making Machine

Automatic Flute Laminating Corrugated Carton Box Machine

This series automatic flute laminating machines are latest designed model with advantages of highs speed, easy operation, working reliable, convenient maintenance,low noise and high accuracy. It will provide to customers with more excellent reliable equipments, which help you to gain the competitive quality in the market .



Main features:

1. Computerized high speed lamination up to 150m/min. Depending on the quality of sheets.



2. E shape lifting board used for the feeding unit enables sheets to be pushed into position by hydraulic jack.Rail with pre-piling device are available for option.



3.High strength feeder ensures smooth running with no missing of sheet even at high speed.



4.Sensing and compensation and alignment device uses several group of sensors to sense the relative position of the running corrugated board so that two servo motors at left and right side of the top paper can drive independently to align top paper with corrugated paper with high accuracy and high speed.



5.Global-functional electric control system with touch screen and PLC program monitors automatically the working condition and facilitate trouble shooting. The electric design conforms to the CE standard.

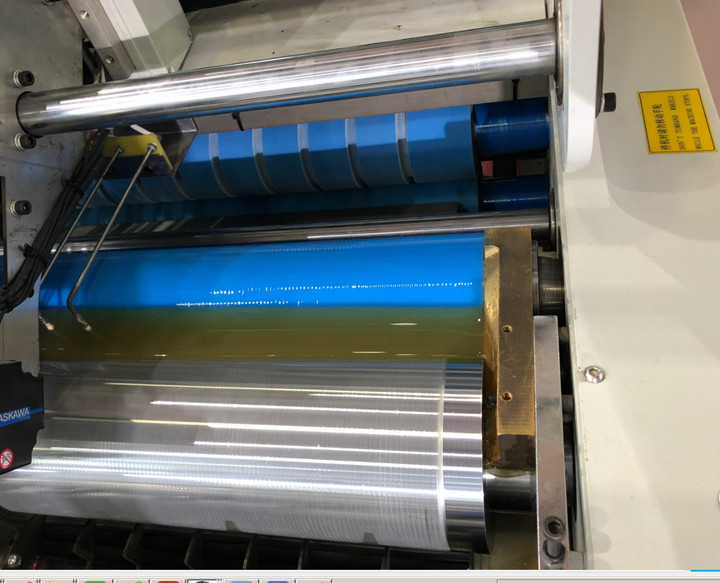

6.Gluing unit uses high precise coating wheels, together with specially designed metering roller enhances the evenness of gluing.The unique gluing wheel with glue stopping device and automatic glue level control system guarantees backflow with no overflow of glue.



7.Machine frames are processed by CNC lathe in one process, which ensures the precise of every positions. Toothed belts for transferring guarantees smooth running with low noise. Motors and the spares uses Chinese famous brand with high efficiency, less trouble and long service life.

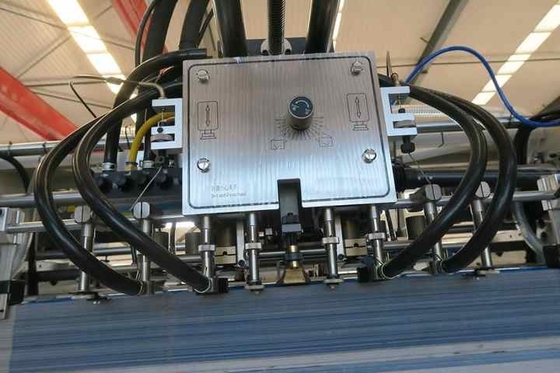

8.Corrugated board feeding unit adopts powerful servo motor control system with the features of high sensitivity and fast speed. The suction unit uses high-pressure blower,SMC high- flow control valve as well as unique dust collection filter box, which enhances suction force for different corrugated paper, ensuring smooth running with no double or more sheets, no missing sheet.



9.Automatic Glue Supply System: The machine adopts imported liquid level controller for glue supply. When glue is insufficient, it can stop the feeder automatically to avoid waste of paper.



(automatic flute laminating machine, automatic flute laminator,corrugated cardboard flute lamination machines, paper laminating machine)



Main specifications:

Model 14145 16145
Maximum size(W×L) 1430×1440mm 1630×1440mm
Minimum size(W×L) 450×450mm 450×450mm
Laminate precision ≤±1.5mm ≤±1.5mm
Max Speed 150M/min 150M/min
Total power 22kw 25kw
Dimensions 15000 x 2250 x 2450mm 15000 x 2450 x 2450mm
Total weight 7500kgs 8500kgs
