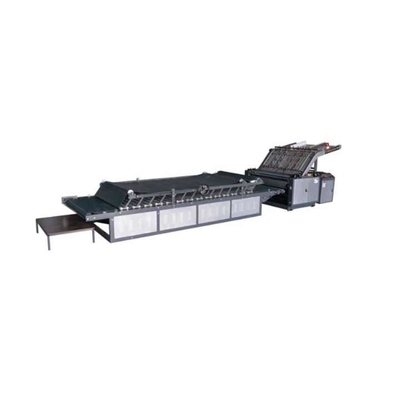

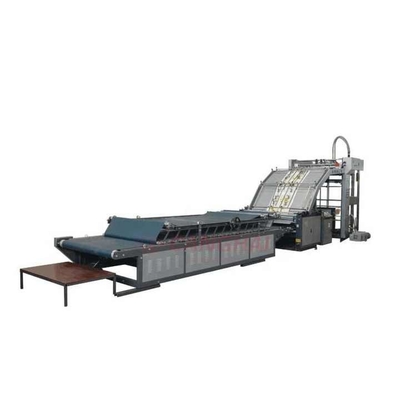

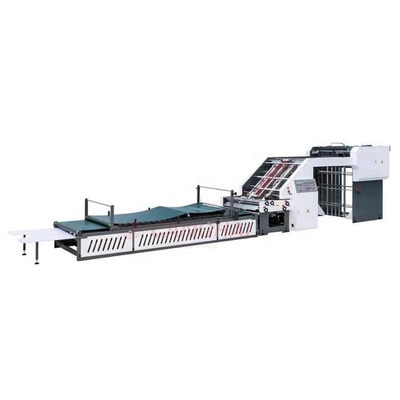

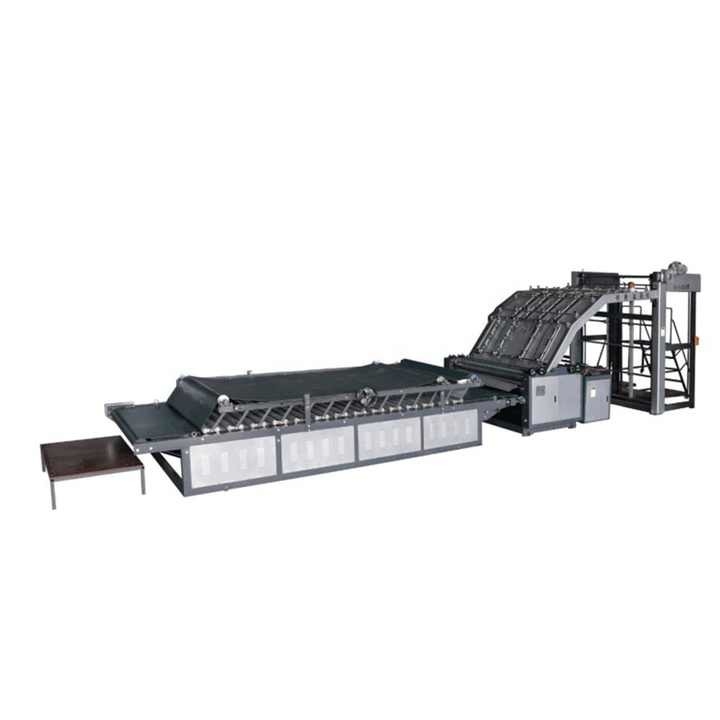

Flute Laminator 1600mm Corrugated Box Machine Computerized

Flute Laminator 1600mm Corrugated Box Machine Computerized
Flute Laminator 1600mm Corrugated Box Machine Computerized Flute Laminator 1600mm Corrugated Box Machine Computerized Flute Laminator 1600mm Corrugated Box Machine Computerized Flute Laminator 1600mm Corrugated Box Machine Computerized

Large Image :  Flute Laminator 1600mm Corrugated Box Machine Computerized

Product Details:
Place of Origin: CHINA
Brand Name: Hh
Certification: CE EAC
Model Number: 1300mm 1600mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: plastic
Delivery Time: 15-30 days
Payment Terms: T/T
Supply Ability: 30 sets every month

Flute Laminator 1600mm Corrugated Box Machine Computerized

Description
Material: Corrugated Cardboard Power: 220V/380V
Product Name: Corrugated Carton Box Machine Size: Customized
Speed: High Speed Type: Automatic
Warranty: 1 Year
High Light:

1600mm Corrugated Box Machine

,

Computerized Corrugated Box Machine

,

1600mm Corrugated Box Making Machine

Flute Laminator Corrugated Carton Box Machine

Features:

1. Feeding of high table, automatic feeding for bottom sheet, elastic front register, simple operation.

2. just need one person to feed the paper. It has low request to paper, suitable for laminating paperboard to bottom paperboard, ABCDE Flute corrugated cardboard. Even filmed paper can be laminated.

3. Top sheet forwarded by manual on high table and the sheet can be piled up to 1.8m.

4. Bottom sheet is automatically feed; the two sheets are piled freely; High efficiency
5. Advanced elastic front register is used for location, high register precision, bottom paper will never exceed. When laminating, it is very easy to make top paper and bottom paper alignment, or top sheet exceeded.
6. Fully automatic glue supply system: glue will be automatically supplied during lamination, and recovered, avoiding glue wasted.
7. Scientific design for linear speed of metering roller, avoiding glue thrown when high-speed running.
7. The whole machine adopts PLC control system, compared with other time-delay device or middle relay control, the bottom paper is transferred more precise and stable, furthermore, speed is greatly increased, and circiut breakdown can automatically display and alarm.
8. Clean the lower roller in gluing section by blade with circulated water, complete cleaning, convenient to replace the blade
9. Floating movable pressing section is adopted to make the laminated paperboard smooth. This section can be moved front and back to take in paper conveniently.

10.

Working principle:



The sheet first to be transmitted manually to front gauge positioning for orientation..Photo electricity switch starts up the vertical pump valve after receiving the signal and makes the bottom sheet to be absorbed to the belt.

Electromagnetic clutch makes the bottom sheet feed automatically from the feeder.

The bottom sheet will be oriented at front positioning together with the sheet after its gluing, then to open the positioning by the thrust which generated from the roller to the bottom sheet.

The top sheet and bottom sheet will be conglutinated through the effect between lamination roller and press roller, then to be transmitted to the press part





1300E 1300*1100mm 320*320mm 9 kw 0-90 4500kg
TM1450E 1450*1100mm 320*320mm 10 kw 0-90 5000kg

. Gear rach is used to control the lift of water tray, which is easily taken out for cleaning.
